R15IT3S-SPC369-P1
Winmate
SKU: 57928800

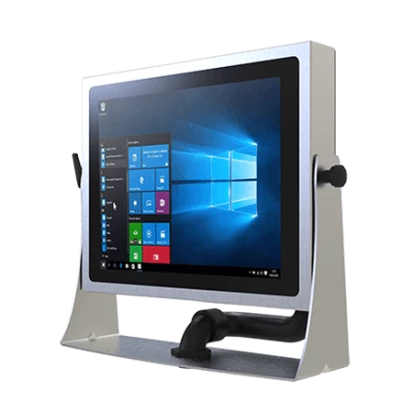

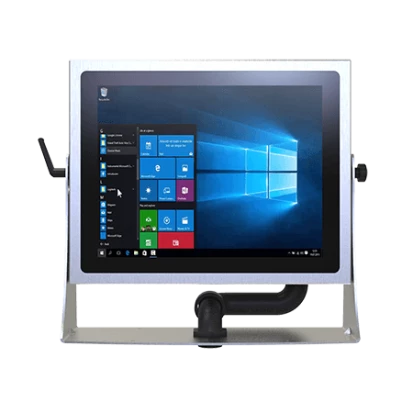

15" Rugged Fanless Panel PC, Stainless P Series, Full IP69K, 1024x768, 300cd/m2, PCAP Touch, Intel Core i5-1135G7 2.4GHz CPU, 4GB DDR4 RAM, 128GB NVME SSD, Waterproof Conduit Pipe: (HDMI, COM, 2xUSB, DC-in, 2xGbE LAN), TPM 2.0, 12VDC-in w/ PSU
Price on request
Available on order
Available on order
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Wall, Wall VESA 100, Yoke mounting
Protection Level of Chassis
IP69K
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
300 Cd/m2
Contrast Ratio
2000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Socket
FCBGA 1449
Max CPU frequency
2.4 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
SATA 3
1
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2280 M
LED / Controls
LED
1xOn/Off LED
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, Windows 11
Dimensions and weight
Width
378 mm
Height
301 mm
Depth
56.2 mm
Operating Conditions
Operating Temperature
0..45 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
7.5 kg
Gross Weight
8.5 kg
