R15IB3S-POC3
Winmate
SKU: 07655700

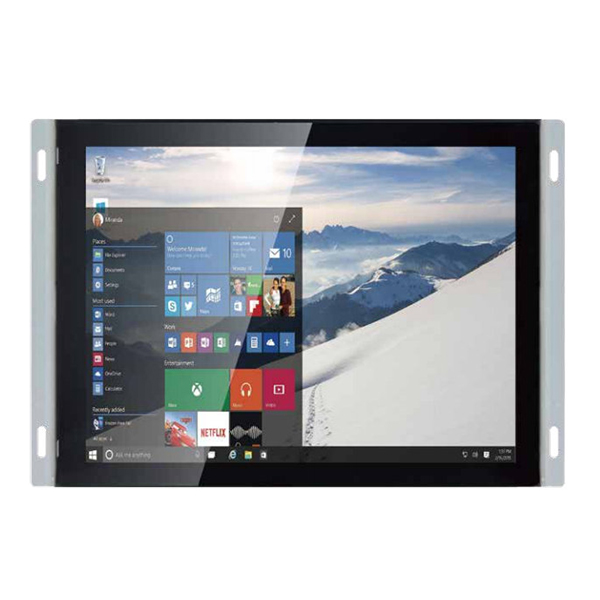

15.6" Panel PC 1024x768 TFT LCD with Projective Cap. Touch, Intel Celeron Bay Trail-M N2930 1.83GHz, DDR3L SODIMM, mSATA SDD Bay, 1xRS-232, 2xGB LAN, 2xUSB, IP65 Front
Price on request
Available
Available
Construction
Construction Chassis
Open Frame
Mounting Configuration
Panel, Wall VESA 100
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15.6 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
700 Cd/m2
Contrast Ratio
250~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Intel Celeron N2930
Socket
CPU onboard
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
2 GB
Maximum Memory
8 GB
Assembly
Removable
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
64 GB
LED / Controls
Controls
Control Buttons
Connectors
Connectors
DB9, HDMI, 2xRJ45 Ethernet, 2xUSB, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Consumption
43 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Windows Embedded Standard 8, Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry
Dimensions and weight
Width
382 mm
Height
274.5 mm
Depth
53.2 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
2.18 g rms for XYZ/ 5-500Hz
Shock
30g for 18ms
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
6 kg
Gross Weight
7 kg
