R10IB3S-67T2
Winmate
SKU: 56535200

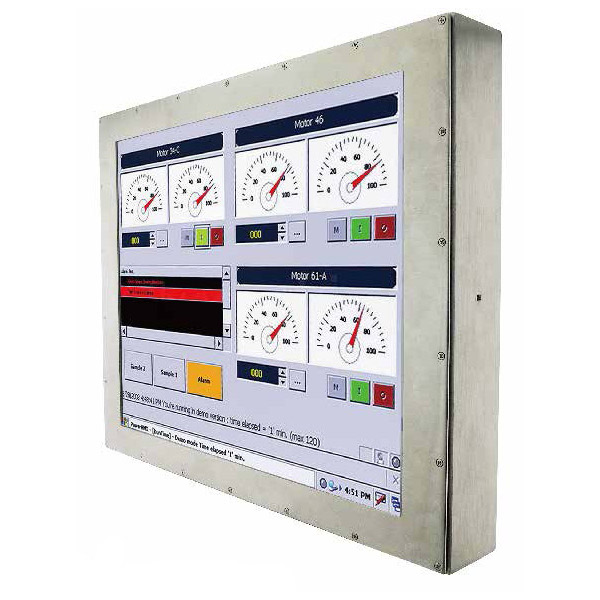

10,4" LCD TFT Fanless Touch Panel Computer with Intel Celeron N2930 1.83Ghz with resistive T/S(optional), 4Gb DDR3, 64GB SSD, protected ports: 3x COM, 6x USB, LAN, Audio, 1x Mini PCIe, Power supply 12VDC, Full IP67
Price on request
Available
Available
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP67
Protection Level of Chassis
IP67
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Intel Celeron N2930
Socket
CPU onboard
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
2
USB 2.0
2
Audio
Audio Controller
Realtek ALC886
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xM12
System Power Input
Input Voltage DC
12..12 V
Power Consumption
33 W
Dimensions and weight
Width
311 mm
Height
257 mm
Depth
46.4 mm
Operating Conditions
Operating Temperature
0..45 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
7.5 kg
Gross Weight
9.5 kg
