R10FA3S-GST2
Winmate
SKU: 56479500

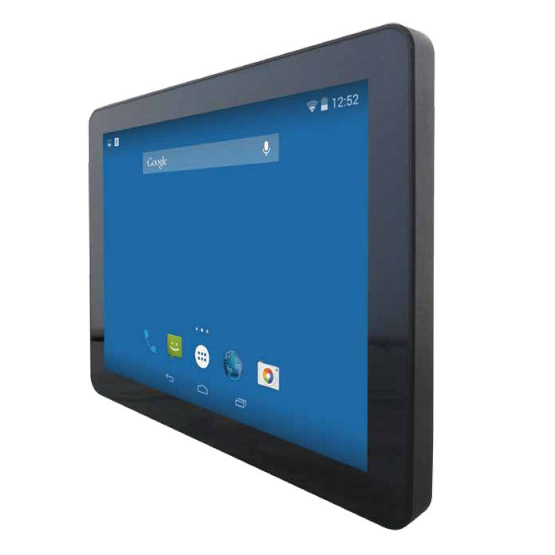

10.4" Fanless Panel PC, G-WIN GS Series, Full IP65, 1024x768, 350 cd/m2, PCAP Touch, NXP i.MX6 Dual-Core 1.0GHz CPU, 1GB RAM, 16GB eMMC, 3xM12 Connectors: (COM, USB, LAN), MicroSD, 12VDC-in M12 Connector, -15..55C
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
1024x768 Dots
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
NXP i.MX6 dual-core
Socket
CPU onboard
Max CPU frequency
1 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR3
Socket Type
Soldered
ECC
No
Default on Board Memory
1 GB
Maximum Memory
2 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
1
USB 2.0
1
Drive interfaces
MicroSD
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
16 GB
Connectors
Connectors
M12, M12 USB, MicroSD card slot, M12 DC-in, M12 LAN
System Power Input
Input Voltage DC
12..12 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Android, Linux OS, Ubuntu
Dimensions and weight
Width
189 mm
Height
145 mm
Depth
37 mm
Operating Conditions
Operating Temperature
-15..55 °C
Humidity
10-95%
Vibration
1.48/1.90/2.24 g rms for XYZ/ 5-500Hz
Shock
40g for 11ms
Dimensions
Net Weight
3.7 kg
Gross Weight
4.2 kg
