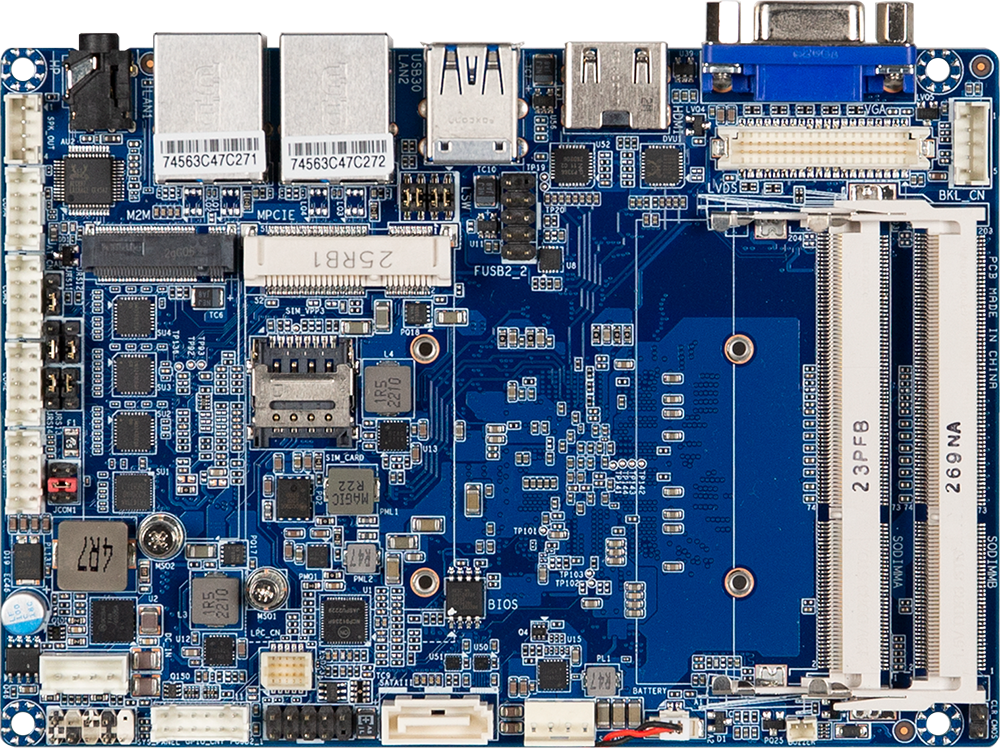

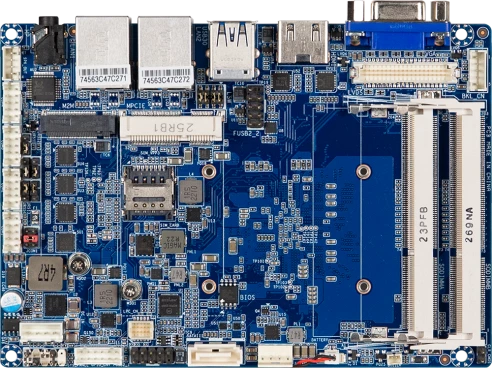

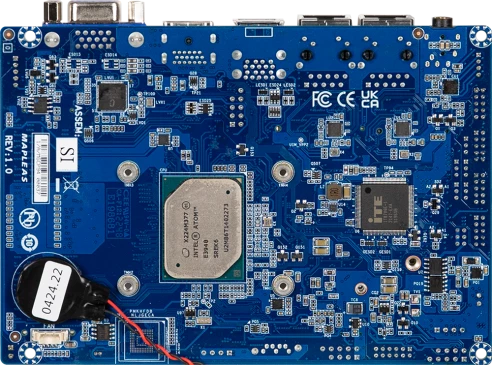

QBiP-E3940B
GIGAIPC
SKU: 57832800
3.5" Embedded SBC, Intel Atom x5-E3940 1.6GHz CPU, Up to 8GB DDR3L RAM, HDMI/VGA/LVDS, 2xGbE LAN, 1xSATA, 4xCOM headers, 2xUSB 3.2, 4xUSB 2.0 headers, 1xM.2, 1xMiniPCIe, SIM, 1x8-bit GPIO, Audio, 9-36VDC-in, 0..+60C
Price on request
Available
Available
System Architecture
Form Factor
3.5" Half-Size SBC
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom x5-E3940
Socket
FCBGA1296
Max CPU frequency
1.8 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel HD Graphics 500
Interfaces
LVDS, HDMI, VGA
Ethernet
Controller Type
Realtek RTL8111H
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
6
USB 2.0
4
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
2
SIM Card slots
Yes, 1
M.2
1
M.2 Form Factor
2242 M
Mini-PCIe/Mini Card
1
Connectors
Connectors
4-pin ATX, DB15 VGA, HDMI, 2xRJ45 Ethernet, 2xUSB, Mic In, Line Out
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
146 mm
Length
101.7 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
0-95%
Dimensions
Net Weight
0.25 kg
Gross Weight
0.35 kg
