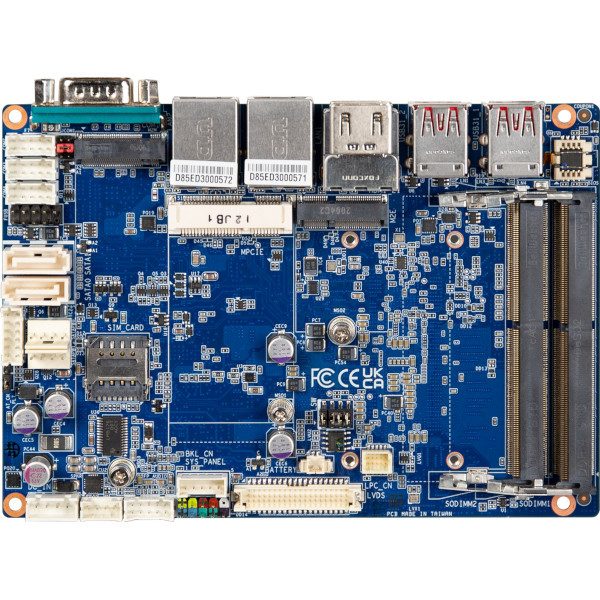

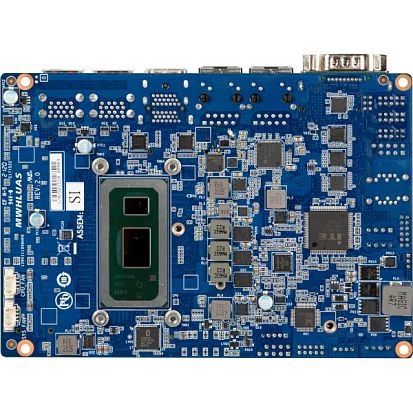

QBiP-8665A

QBiP-8665A

GIGAIPC
SKU: 57395200
3.5 SubCompact Board Intel Core i7-8665UE, 32GB onboard DDR4, 2xGbE LAN, 1xM.2 2280 M-Key, 1xM.2 2230 E-Key, 2xHDMI, 1xLVDS, 1xMini-PCIe, 6xUSB, 4xCOM, GPIO, Audio, 0..60 C, 9V..36V DC
Price on request
Available
Available

System Architecture
Form Factor
3.5"
CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Core i7-8665UE
Socket
FCBGA 1528
Max CPU frequency
4.4 GHz
Chipset
Chipset
Intel Whiskey lake SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Graphic
Graphic Controller
Intel UHD Graphics 620
Interfaces
LVDS, 2xHDMI
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Audio
Audio Controller
Realtek HD Audio Codec
Extension Slots
Total
3
SIM Card slots
Yes
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Internal Ports
COM, 2xCOM, 2xSATA 3, 2xUSB 2.0, GPIO
Connectors
4xDB9, LVDS, 2xHDMI, 2xRJ45, 6xUSB, DB15 GPIO
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
146 mm
Length
101.7 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.15 kg
Gross Weight
0.53 kg
