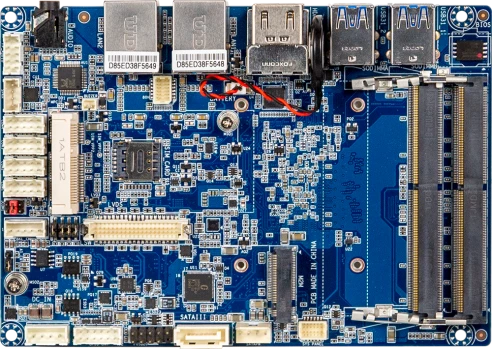

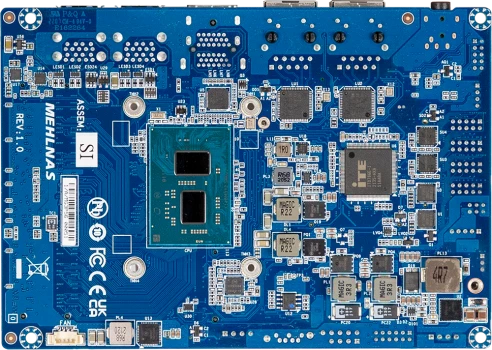

QBiP-6412A
GIGAIPC
SKU: 57486700
3.5" Embedded SBC with Intel Celeron J6412, 2xSO-DIMM DDR4 up to 32GB RAM, 2xHDMI, 2xGbE, 1xSATA RAID, 4xCOM, 6xUSB, 1xM.2, 1xMiniPCIe, GPIO, Audio, 9..36VDC, 0..90%RH, 0..+60C
Price on request
Available
Available
System Architecture
Form Factor
3.5" Half-Size SBC
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
LVDS, 2xHDMI
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Intel HD Audio
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
2
SIM Card slots
Yes, 1
M.2
1
M.2 Form Factor
2280 M
Mini-PCIe/Mini Card
1
Connectors
Connectors
4-pin ATX, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
146 mm
Length
101.7 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.38 kg
Gross Weight
0.5 kg
