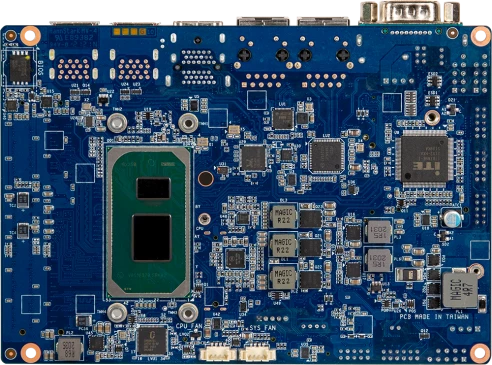

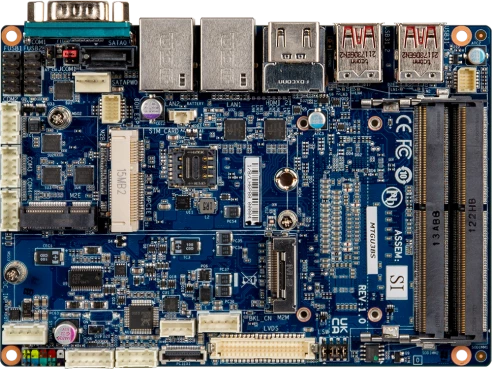

QBiP-1145G7EBT
GIGAIPC
SKU: 57834300
3.5" Embedded SBC, Intel 11th Gen Core i5-1145G7E 4.1GHz CPU, Up to 64GB DDR4 RAM, 2xHDMI/LVDS, 2xGbE LAN, 1xSATA, 1xRS232/422/485, 3xCOM headers, 4xUSB 3.2, 4xUSB 2.0 headers, 2xM.2, 1xPCIe x1, 1xMiniPCIe, SIM, 1xGPIO, Audio, 9-48VDC-in, -20..+70C
Price on request
Available
Available
System Architecture
Form Factor
3.5" Half-Size SBC
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1145G7E
Socket
FCBGA 1449
Max CPU frequency
4.1 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel Iris Xe Graphics
Interfaces
LVDS, 2xHDMI
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek HD Audio Codec
Drive interfaces
SATA 3
1
RAID Levels
0, 1
M.2
1
Extension Slots
Total
4
SIM Card slots
Yes, 1
PCI Express x1
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
Mini-PCIe/Mini Card
1
Connectors
Connectors
4-pin ATX, DB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
146 mm
Length
101.7 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.3 kg
Gross Weight
0.4 kg
