QBiP-1135G7B

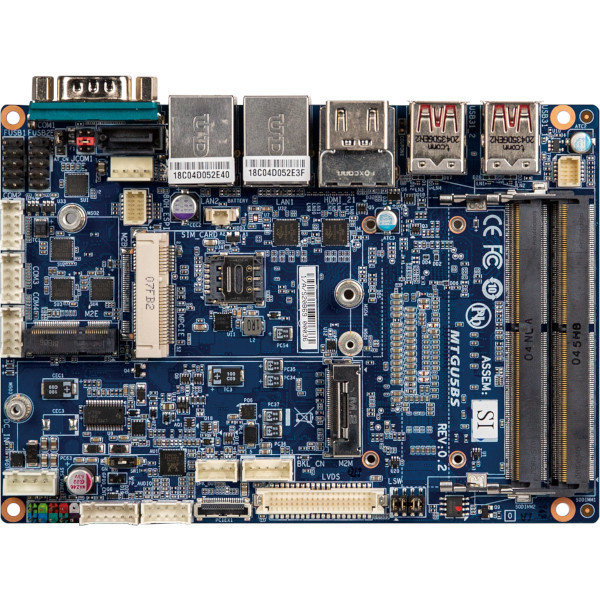

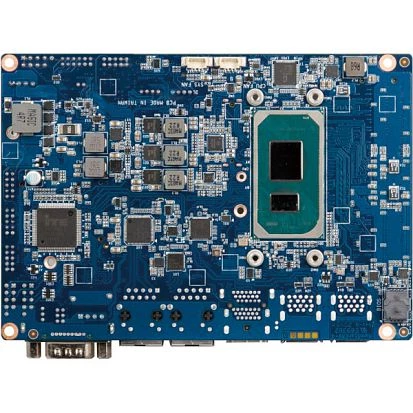

QBiP-1135G7B

GIGAIPC
SKU: 57346000
3.5" Embedded SBC with Intel Core i5-1135G7 11th Gen. CPU, 2xSO-DIMM DDR4 up to 64GB RAM, 2xHDMI, 2xGbE, 1xSATA RAID, 4xCOM, 8xUSB, 2xM.2, 1xMini-PCIe, 1xPCIex1, Audio, 9..48VDC, 0..+60C
Price on request
Available
Available

CPU
CPU Support Type
Core i5
Socket
FCBGA 1449
Max CPU frequency
4.2 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Iris Xe Graphics
Interfaces
LVDS, 2xHDMI
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek HD Audio Codec
Drive interfaces
RAID Levels
1
Extension Slots
Total
4
SIM Card slots
Yes, 1
PCI Express x1
1
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Internal Ports
4xUSB 2.0, 4-pin ATX
Connectors
2xHDMI, 2xRJ45, 8xUSB, DB15 GPIO
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
146 mm
Length
101.7 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
1.5 kg
CPU
CPU Support Type
Core i5
Socket
FCBGA 1449
Max CPU frequency
4.2 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Iris Xe Graphics
Interfaces
LVDS, 2xHDMI
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek HD Audio Codec
Drive interfaces
RAID Levels
1
Extension Slots
Total
4
SIM Card slots
Yes, 1
PCI Express x1
1
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Internal Ports
4xUSB 2.0, 4-pin ATX
Connectors
2xHDMI, 2xRJ45, 8xUSB, DB15 GPIO
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
146 mm
Length
101.7 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
1.5 kg
CPU
CPU Support Type
Core i5
Socket
FCBGA 1449
Max CPU frequency
4.2 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Iris Xe Graphics
Interfaces
LVDS, 2xHDMI
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek HD Audio Codec
Drive interfaces
RAID Levels
1
Extension Slots
Total
4
SIM Card slots
Yes, 1
PCI Express x1
1
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Internal Ports
4xUSB 2.0, 4-pin ATX
Connectors
2xHDMI, 2xRJ45, 8xUSB, DB15 GPIO
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
146 mm
Length
101.7 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
1.5 kg
CPU
CPU Support Type
Core i5
Socket
FCBGA 1449
Max CPU frequency
4.2 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Iris Xe Graphics
Interfaces
LVDS, 2xHDMI
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek HD Audio Codec
Drive interfaces
RAID Levels
1
Extension Slots
Total
4
SIM Card slots
Yes, 1
PCI Express x1
1
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Internal Ports
4xUSB 2.0, 4-pin ATX
Connectors
2xHDMI, 2xRJ45, 8xUSB, DB15 GPIO
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
146 mm
Length
101.7 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
1.5 kg

Documentation
QBiP-1135G7B-Datasheet QBiP-1135G7B User Manual
Documentation
QBiP-1135G7B-Datasheet QBiP-1135G7B User Manual
Documentation
QBiP-1135G7B-Datasheet QBiP-1135G7B User Manual
Documentation
QBiP-1135G7B-Datasheet QBiP-1135G7B User Manual
