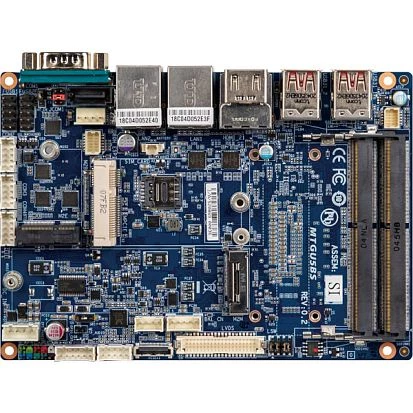

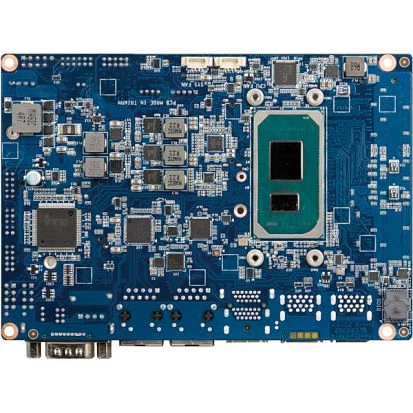

QBiP-1115G4EBT
GIGAIPC
SKU: 57834400
3.5" Embedded SBC, Intel 11th Gen Core i3-1115G4E 3.9GHz CPU, Up to 64GB DDR4 RAM, 2xHDMI/LVDS, 2xGbE LAN, 1xSATA, 1xRS232/422/485, 3xCOM headers, 4xUSB 3.2, 4xUSB 2.0 headers, 2xM.2, 1xPCIe x1, 1xMiniPCIe, SIM, 1xGPIO, Audio, 9-48VDC-in, -20..+70C
Price on request
Available
Available
System Architecture
Form Factor
3.5" Half-Size SBC
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i3-1115G4E
Max CPU frequency
3.9 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
LVDS, 2xHDMI
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
8
USB 2.0
4
USB v3.x
4
Audio
Audio Controller
Realtek HD Audio Codec
Drive interfaces
SATA 3
1
RAID Levels
0, 1
Extension Slots
Total
4
PCI Express x1
1
M.2
2
M.2 Form Factor
2280 M, 2230 E
Mini-PCIe/Mini Card
1
Connectors
Connectors
4-pin ATX, DB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
146 mm
Length
101.7 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
0.3 kg
Gross Weight
0.4 kg
