QBiP-1115G4EA

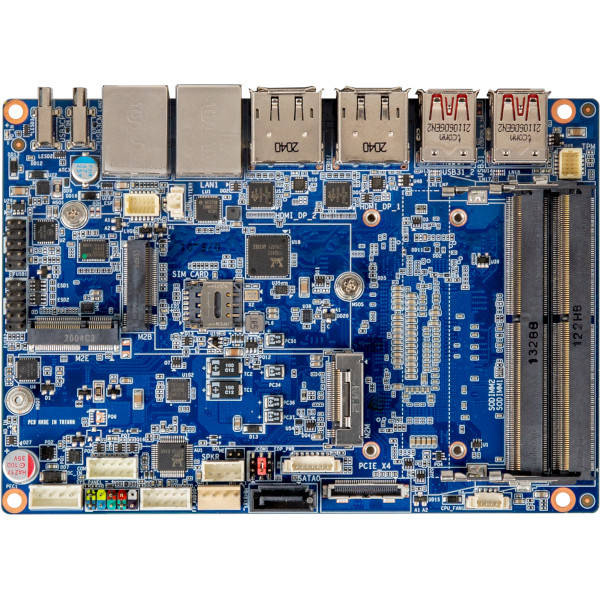

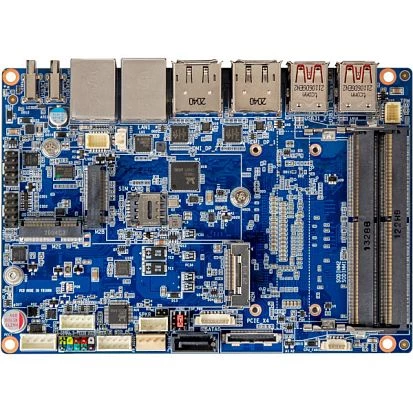

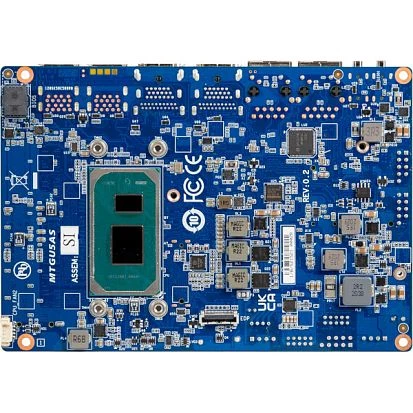

QBiP-1115G4EA

GIGAIPC
SKU: 57345600
3.5" Embedded SBC with Intel Core i3-1115G4E 11th Gen. CPU, 2xSO-DIMM DDR4 up to 64GB RAM, 2xHDMI, 2xDP, 1xeDP, 2xGbE, 1xSATA RAID, 1xCOM, 10xUSB, 3xM.2, 1xPCIex4, Audio, 12..24VDC, 0..+60C
Price on request
Available
Available

System Architecture
Form Factor
3.5"
CPU
CPU Support Type
Core i3
Processor Installed
Intel Core i3-1115G4
Max CPU frequency
4.1 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Iris Xe Graphics
Interfaces
2xHDMI, 2xDisplayPort, eDP
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232
1
USB Total
10
USB 2.0
4
USB v3.x
6
Audio
Audio Controller
Realtek HD Audio Codec
Drive interfaces
RAID Levels
1
Extension Slots
Total
4
PCI Express x4
1
M.2
3
Connectors
Internal Ports
COM, SATA 3, 4xUSB 2.0, 4-pin (12V DC CPU)
Connectors
2xHDMI, 2xRJ45, 10xUSB, 2xDisplayPort
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
146 mm
Length
101.7 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.5 kg
Gross Weight
1.5 kg
