QBi-8565A

QBi-8565A

GIGAIPC
SKU: 57122900

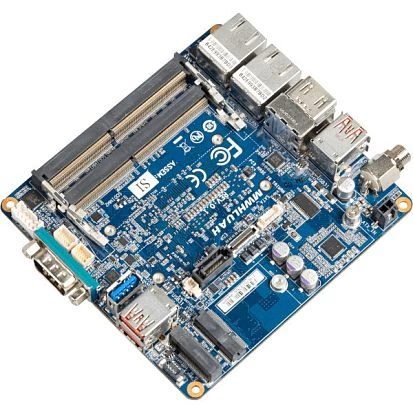

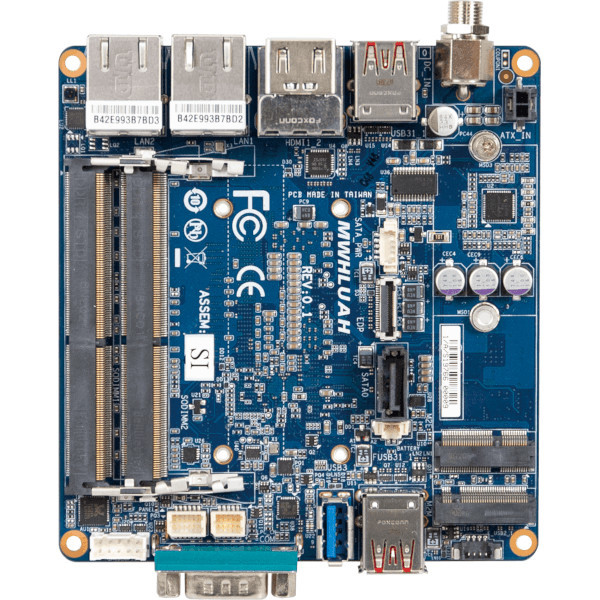

Embedded Compact Board, Intel Core i7-8565U 1.8GHz CPU, 2x DDR4 SO-DIMM, 2xHDMI, 2xGbit LAN, 2xUSB 3.0, 2xUSBx2.0, 1xRS-RS-232/422/485, 1xSATA, 1xM.2 E-Key, 1xM.2 M-Key, Audio, 9..36V DC-In
Price on request
Available
Available

CPU
СPU Generation/Family
Whiskey Lake
Processor Installed
Intel Core i7
Socket
CPU onboard
Max CPU frequency
1.8 GHz
Number of CPU
1
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI, eDP
Ethernet
Controller Type
Intel i219-V 10/100/1000 Mbps, Realtek RTL8111HS
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
6
USB 2.0
1
USB v3.x
5
Audio
Audio Controller
Intel HD Audio
Drive interfaces
RAID Levels
1
M.2
1
Extension Slots
Total
2
M.2
2
Connectors
Internal Ports
SATA 3, USB 2.0, LPC TPM, 10-pin Audio, USB 3.0
Connectors
2xHDMI, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input, DB9 Male
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
105 mm
Length
110 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.13 kg
Gross Weight
0.33 kg
