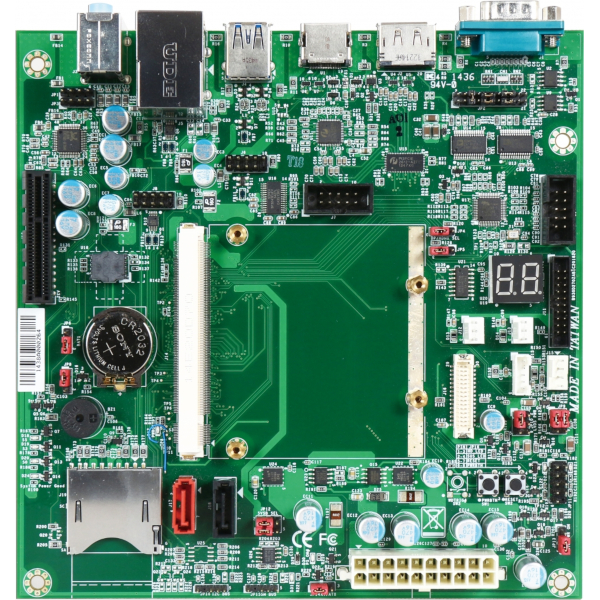

PQ7-C201

PQ7-C201

Portwell
SKU: 08044700
Mini-ITX Form Factor Carrier Board For Q7 Module, 1x Gigabit Ethernet, 2x SATA, 1x PCIe x4, 1x USB 3.0, 2xUSB 2.0, Audio
Price on request
Available
Available

System Architecture
Form Factor
Mini-ITX
CPU
CPU Support Type
Atom
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB 2.0
2
USB v3.x
1
Extension Slots
PCI Express x4
1
Connectors
Connectors
RJ45 Ethernet, 3xUSB, Line Out, 2xSATA
Dimensions
Net Weight
0.7 kg
Gross Weight
1 kg
