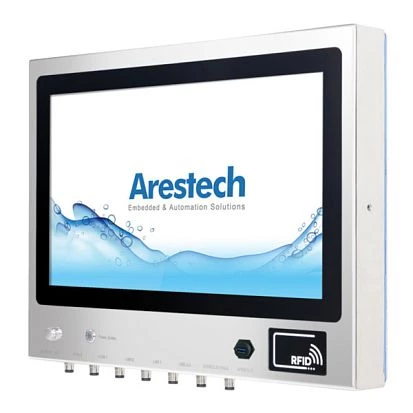

PPC-Z217RW-B61A1
Arestech
SKU: 57011000
21,5" IP66/69K Waterproof Stainless Steel Panel PC, 250 cd/m2, 1920x1080, Resistive Touch, Intel Core i5-7200U, Up to 32GB DDR4, 2.5" SATA Bay, 2x Gbe LAN, 4xUSB, 2xCOM, 9-36V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Panel, Wall VESA 100, Yoke mounting, VESA 200
Protection Level of Front Side (Panel)
IP66, IP69K
Protection Level of Chassis
IP66, IP69K
Type
Fanless
Display
Display Type
LCD
Diagonal
21.5 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7200U
Max CPU frequency
3.1 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xUSB, 2xM12
System Power Input
Input Voltage DC
9..36 V
Power Consumption
36 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Linux kernel 4.x
Dimensions and weight
Width
570 mm
Height
430 mm
Depth
67 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
Dimensions
Net Weight
12 kg
Gross Weight
18 kg
