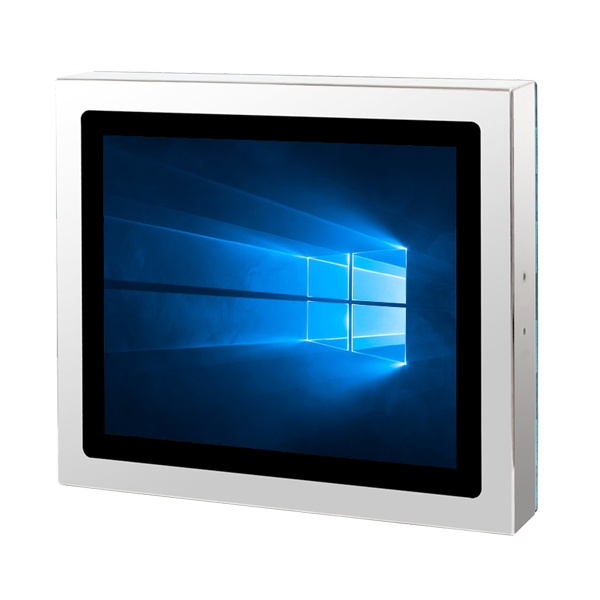

PPC-Z177R-B61A2
Arestech
SKU: 57307200
19" Full IP66/69K Stainless Steel Panel PC, 350 cd/m2, 1280x1024, Resistive Touch, Intel Core i5-7200U 2.5GHz, 4GB RAM, 256GB SSD TLC, 2x Gbit LAN, 2xUSB 3.0, 1xM12 for 2xUSB2.0, 1xRS232, 1xRS-232/422/485, 9..36V DC-In(M12)
Price on request
Available
Available
Construction
Construction Chassis
Stainless Steel
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75, Yoke mounting
Protection Level of Front Side (Panel)
IP66, IP69K
Protection Level of Chassis
IP66, IP69K
Type
Fanless
Display
Display Type
LCD
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Kaby Lake
Processor Installed
Intel Core i5-7200U
Max CPU frequency
3.1 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps, Intel i219-V 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xDB9, 2xRJ45 Ethernet, 4xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
9..36 V
Power Consumption
15 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
439 mm
Height
373 mm
Depth
66.9 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Shock
20 G, IEC 60068-2-27, half sine, 11 ms duration
Dimensions
Net Weight
7.77 kg
Gross Weight
12.5 kg
