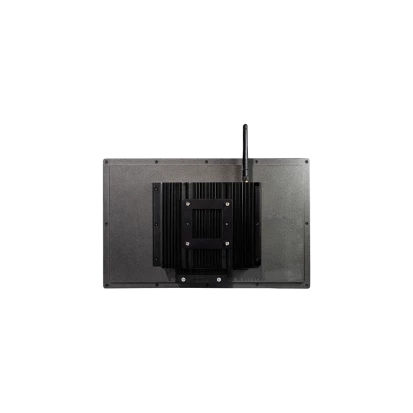

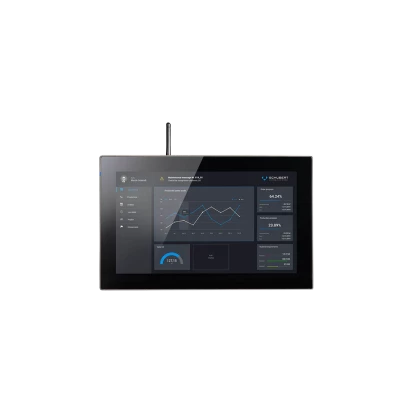

PPC-Pico-13.3-Anbau--C

PPC-Pico-13.3-Anbau--C

SKU: 80101900
Prime Panel Pico 13.3" Anbau, IP65 Full, 1920x1080, 400cd/m2, PCAP Touch, Intel Atom x7-E3950 CPU, Up to 8GB DDR3L, 1xDP/1xHDMI, 2xGbE LAN, 4xUSB, 1xRS232/422/485, mSATA, MiniPCIe, SD Slot, 12-32VDC-in, 3-Jahre Garantie (PPI1100AD_133)
Price on request
Available
Available
RAM
Price with VAT
Price on request
Price on request
Flash Disk / mSATA / M.2
Price on request
Price on request
Price on request
Price on request
Panel Mount Kit
Price on request
Operation System
Price on request
Price on request
Accessories
Price on request
Additional Options 1
Price on request
Price on request
Additional Options 2
Price on request
Additional Options 3
Price on request
Additional Options 4
Price on request
RAM
Price with VAT
Price on request
Price on request
Flash Disk / mSATA / M.2
Price on request
Price on request
Price on request
Price on request
Panel Mount Kit
Price on request
Operation System
Price on request
Price on request
Accessories
Price on request
Additional Options 1
Price on request
Price on request
Additional Options 2
Price on request
Additional Options 3
Price on request
Additional Options 4
Price on request
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
13.3 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
400 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom x7-E3950
Socket
FCBGA1296
Max CPU frequency
2 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Industrial Interfaces
CAN Port
1
Drive interfaces
mSATA
1
SD Slots
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, Display Port, DC input (terminal block), SD card slot
System Power Input
Input Voltage DC
12..32 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
45.6 W
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Debian 10, Prime OS
Dimensions and weight
Width
354.8 mm
Height
226.2 mm
Depth
80.5 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
20-90%
Standards and Certifications
Certifications
CE, IEC 61000-6-2, IEC 61000-6-3, IEC 61000-6-4
Safety
CSA, UL 61010-2-201
Vandal Resistance
EN 62262, IK08 level
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.6 kg
Gross Weight
3.1 kg
