PPC-Pico-10.1-Einbau--C

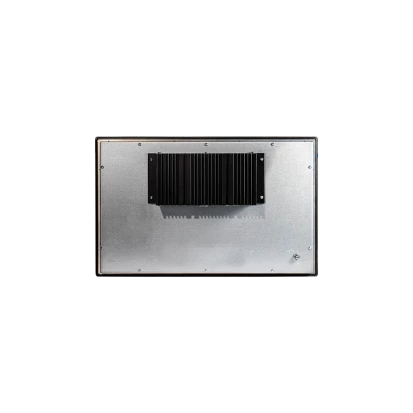

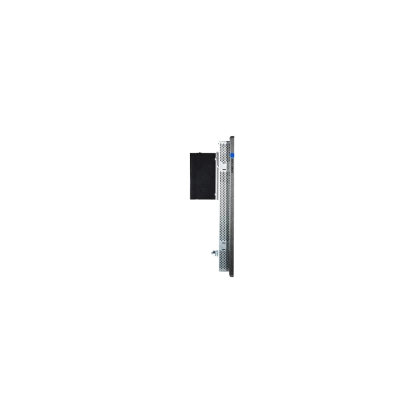

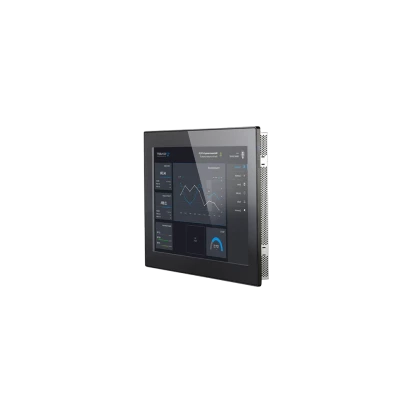

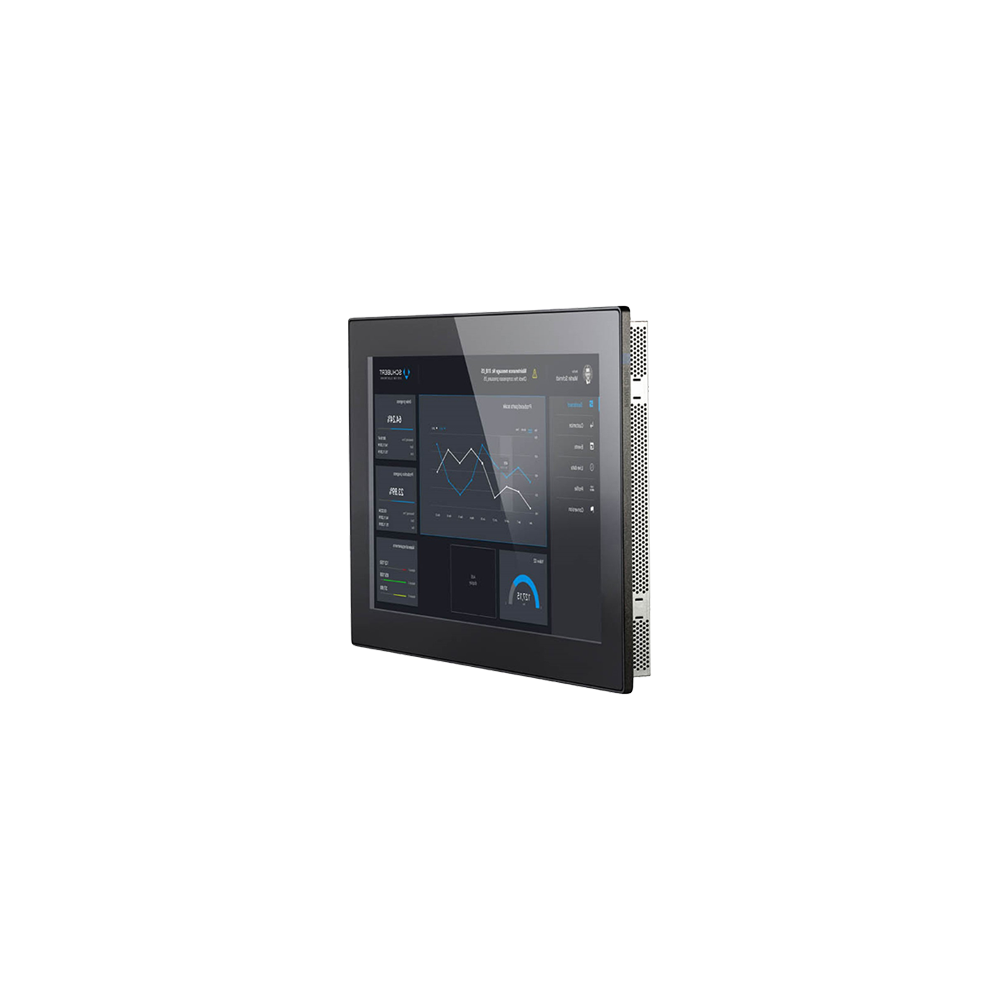

PPC-Pico-10.1-Einbau--C

SKU: 80101700
Prime Panel Pico 10.1" Einbau, IP65 Front, 1280x800, 500cd/m2, PCAP Touch, Intel Atom x7-E3950 CPU, 8GB DDR3L, 128GB SSD mSATA, 1xDP/1xHDMI, 2xGbE LAN, 4xUSB, 1xRS232/422/485, 12-32VDC-in, 3-Jahre Garantie (PPI1100ED_101)
Price on request
Available
Available
RAM
Price with VAT
Price on request
Price on request
Flash Disk / mSATA / M.2
Price on request
Price on request
Price on request
Price on request
Operation System
Price on request
Price on request
Additional Options 1
Price on request
Price on request
Additional Options 2
Price on request
Price on request
Additional Options 4
Price on request
RAM
Price with VAT
Price on request
Price on request
Flash Disk / mSATA / M.2
Price on request
Price on request
Price on request
Price on request
Operation System
Price on request
Price on request
Additional Options 1
Price on request
Price on request
Additional Options 2
Price on request
Price on request
Additional Options 4
Price on request
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP20
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:10
Brightness
500 Cd/m2
Contrast Ratio
900~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom x7-E3950
Socket
FCBGA1296
Max CPU frequency
2 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Industrial Interfaces
CAN Port
1
Drive interfaces
mSATA
1
SD Slots
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, Display Port, DC input (terminal block), SD card slot
System Power Input
Input Voltage DC
12..32 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Debian 10
Dimensions and weight
Width
275 mm
Height
193.6 mm
Depth
79 mm
Operating Conditions
Operating Temperature
-10..45 °C
Humidity
20-90%
Standards and Certifications
Certifications
CE, IEC 61000-6-2
EMI
EN 55024, en_55032
Safety
CSA, UL 61010-2-201
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.6 kg
Gross Weight
3.1 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP20
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:10
Brightness
500 Cd/m2
Contrast Ratio
900~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom x7-E3950
Socket
FCBGA1296
Max CPU frequency
2 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Industrial Interfaces
CAN Port
1
Drive interfaces
mSATA
1
SD Slots
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, Display Port, DC input (terminal block), SD card slot
System Power Input
Input Voltage DC
12..32 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Debian 10
Dimensions and weight
Width
275 mm
Height
193.6 mm
Depth
79 mm
Operating Conditions
Operating Temperature
-10..45 °C
Humidity
20-90%
Standards and Certifications
Certifications
CE, IEC 61000-6-2
EMI
EN 55024, en_55032
Safety
CSA, UL 61010-2-201
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.6 kg
Gross Weight
3.1 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP20
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:10
Brightness
500 Cd/m2
Contrast Ratio
900~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom x7-E3950
Socket
FCBGA1296
Max CPU frequency
2 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Industrial Interfaces
CAN Port
1
Drive interfaces
mSATA
1
SD Slots
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, Display Port, DC input (terminal block), SD card slot
System Power Input
Input Voltage DC
12..32 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Debian 10
Dimensions and weight
Width
275 mm
Height
193.6 mm
Depth
79 mm
Operating Conditions
Operating Temperature
-10..45 °C
Humidity
20-90%
Standards and Certifications
Certifications
CE, IEC 61000-6-2
EMI
EN 55024, en_55032
Safety
CSA, UL 61010-2-201
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.6 kg
Gross Weight
3.1 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP20
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Aspect Ratio
16:10
Brightness
500 Cd/m2
Contrast Ratio
900~1
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Atom x7-E3950
Socket
FCBGA1296
Max CPU frequency
2 GHz
Chipset
Chipset
Intel Apollo Lake SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Industrial Interfaces
CAN Port
1
Drive interfaces
mSATA
1
SD Slots
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, Display Port, DC input (terminal block), SD card slot
System Power Input
Input Voltage DC
12..32 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Debian 10
Dimensions and weight
Width
275 mm
Height
193.6 mm
Depth
79 mm
Operating Conditions
Operating Temperature
-10..45 °C
Humidity
20-90%
Standards and Certifications
Certifications
CE, IEC 61000-6-2
EMI
EN 55024, en_55032
Safety
CSA, UL 61010-2-201
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.6 kg
Gross Weight
3.1 kg
Documentation
6902180_Prime_Panel_Pico_Einbau_User_Manual_V1_01_EN.pdf 6902179_Prime_Panel_Pico_Einbau_Betriebsanleitung_V1_02_DE.pdf SSE_PrimePanel_IPC_PICO_E_101_Dimensions.pdf 6902177_PPI1100ED_Schnellmontageanleitung_V1_01_EN_DE.pdf Prime_Panel_Pico_Einbau_FactSheet_Datasheet_EN.pdf
Documentation
6902180_Prime_Panel_Pico_Einbau_User_Manual_V1_01_EN.pdf 6902179_Prime_Panel_Pico_Einbau_Betriebsanleitung_V1_02_DE.pdf SSE_PrimePanel_IPC_PICO_E_101_Dimensions.pdf 6902177_PPI1100ED_Schnellmontageanleitung_V1_01_EN_DE.pdf Prime_Panel_Pico_Einbau_FactSheet_Datasheet_EN.pdf
Documentation
6902180_Prime_Panel_Pico_Einbau_User_Manual_V1_01_EN.pdf 6902179_Prime_Panel_Pico_Einbau_Betriebsanleitung_V1_02_DE.pdf SSE_PrimePanel_IPC_PICO_E_101_Dimensions.pdf 6902177_PPI1100ED_Schnellmontageanleitung_V1_01_EN_DE.pdf Prime_Panel_Pico_Einbau_FactSheet_Datasheet_EN.pdf
Documentation
6902180_Prime_Panel_Pico_Einbau_User_Manual_V1_01_EN.pdf 6902179_Prime_Panel_Pico_Einbau_Betriebsanleitung_V1_02_DE.pdf SSE_PrimePanel_IPC_PICO_E_101_Dimensions.pdf 6902177_PPI1100ED_Schnellmontageanleitung_V1_01_EN_DE.pdf Prime_Panel_Pico_Einbau_FactSheet_Datasheet_EN.pdf
PPC-Pico-13.3-Anbau--C Prime Panel Pico 13.3" Anbau, IP65 Full, 1920x1080, 400cd/m2, PCAP Touch, Intel Atom x7-E3950 CPU, 8GB DDR3L, 128GB SSD mSATA, 1xDP/1xHDMI, 2xGbE LAN, 4xUSB, 1xRS232/422/485, 12-32VDC-in, 3-Jahre Garantie (PPI1100AD_133)
PPC-Pico-13.3-Einbau--C Prime Panel Pico 13.3" Einbau, IP65 Front, 1920x1080, 400cd/m2, PCAP Touch, Intel Atom x7-E3950 CPU, 8GB DDR3L, 128GB SSD mSATA, 1xDP/1xHDMI, 2xGbE LAN, 4xUSB, 1xRS232/422/485, 12-32VDC-in, 3-Jahre Garantie (PPI1100ED_133)

Get a Quote

PPC-Pico-10.1-Einbau--C
SKU: 80101700
PPC-Pico-10.1-Einbau--C
PPC-Pico-10.1-Einbau--C
PPC-Pico-10.1-Einbau--C
PPC-Pico-10.1-Einbau--C
PPC-Pico-10.1-Einbau--C

Recommended products

PPC-321SW-PDI7A
Advantech
PPC-321SW-PDI7A
21.5" Fanless PPC-321SW Panel PC, IP66 Front, 1920x1080, 250cd/m2, PCAP Touch, Intel Core i7-1365UE CPU, Up to 32GB DDR5 RAM, DP, 2x2.5GbE LAN, 3xUSB 3.2, 1xUSB 2.0, 2.5" Drive Bay, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, Audio, 24VDC-in
ST12253 ST12253
LEX COMPUTECH
ST12253
10.4" TFT LCD Fanless Panel PC, Touch Screen, Intel Atom E3845 1.91GHz 2I385CW CPU Board, 4GB DDR3L onboard, VGA, 2xGbit LAN, 4xCOM, 4xUSB, 2.5" SATA Drive Bay, mSATA, 1xMini-PCIe, 9..36V DC-In
PPC-Performance-15.6-Einbau--C PPC-Performance-15.6-Einbau--C PPC-Performance-15.6-Einbau--C PPC-Performance-15.6-Einbau--C PPC-Performance-15.6-Einbau--C
PPC-Performance-15.6-Einbau--C
Prime Panel Performance 15.6" Einbau, IP65 Front, 1920x1080, 450cd/m2, PCAP Touch, Intel Celeron G4900T CPU, 8GB DDR4 RAM, 128GB M.2 SSD, 2xDP, 1xDVI-D, 2xGbE LAN, 4xUSB 3.2, 4xUSB 2.0, 1xCOM, 1xPCIe x16, 18-26VDC-in
PPC-Pico-15.6-Einbau--C PPC-Pico-15.6-Einbau--C PPC-Pico-15.6-Einbau--C PPC-Pico-15.6-Einbau--C PPC-Pico-15.6-Einbau--C
PPC-Pico-15.6-Einbau--C
Prime Panel Pico 15.6" Einbau, IP65 Front, 1920x1080, 450cd/m2, PCAP Touch, Intel Atom x7-E3950 CPU, 8GB DDR3L, 128GB SSD mSATA, 1xDP/1xHDMI, 2xGbE LAN, 4xUSB, 1xRS232/422/485, 12-32VDC-in, 3-Jahre Garantie (PPI1100ED_156)
PPC-Pico-13.3-Anbau--C PPC-Pico-13.3-Anbau--C PPC-Pico-13.3-Anbau--C PPC-Pico-13.3-Anbau--C PPC-Pico-13.3-Anbau--C
PPC-Pico-13.3-Anbau--C
Prime Panel Pico 13.3" Anbau, IP65 Full, 1920x1080, 400cd/m2, PCAP Touch, Intel Atom x7-E3950 CPU, 8GB DDR3L, 128GB SSD mSATA, 1xDP/1xHDMI, 2xGbE LAN, 4xUSB, 1xRS232/422/485, 12-32VDC-in, 3-Jahre Garantie (PPI1100AD_133)
PPC-Pico-13.3-Einbau--C PPC-Pico-13.3-Einbau--C PPC-Pico-13.3-Einbau--C PPC-Pico-13.3-Einbau--C PPC-Pico-13.3-Einbau--C
PPC-Pico-13.3-Einbau--C
Prime Panel Pico 13.3" Einbau, IP65 Front, 1920x1080, 400cd/m2, PCAP Touch, Intel Atom x7-E3950 CPU, 8GB DDR3L, 128GB SSD mSATA, 1xDP/1xHDMI, 2xGbE LAN, 4xUSB, 1xRS232/422/485, 12-32VDC-in, 3-Jahre Garantie (PPI1100ED_133)
PPC-Performance-21.5-Anbau--C PPC-Performance-21.5-Anbau--C PPC-Performance-21.5-Anbau--C PPC-Performance-21.5-Anbau--C PPC-Performance-21.5-Anbau--C
PPC-Performance-21.5-Anbau--C
Prime Panel Performance 21.5" Anbau, IP65 Full, 1920x1080, 350cd/m2, PCAP Touch, Intel Celeron G4900T CPU, Up to 64GB DDR4 RAM, 2xDP, 1xDVI-D, 2xGbE LAN, 4xUSB 3.2, 4xUSB 2.0, 2xCOM, 1x2.5" Bay, 1xM.2 Key-M, CFast, MiniPCIe, 1xPCIe x16, 18-26VDC-in
PPC-Performance-21.5-Einbau--C PPC-Performance-21.5-Einbau--C PPC-Performance-21.5-Einbau--C PPC-Performance-21.5-Einbau--C PPC-Performance-21.5-Einbau--C
PPC-Performance-21.5-Einbau--C
Prime Panel Performance 21.5" Einbau, IP65 Front, 1920x1080, 350cd/m2, PCAP Touch, Intel Celeron G4900T CPU, Up to 64GB DDR4 RAM, 2xDP, 1xDVI-D, 2xGbE LAN, 4xUSB 3.2, 4xUSB 2.0, 2xCOM, 1x2.5" Bay, 1xM.2 Key-M, CFast, MiniPCIe, 1xPCIe x16, 18-26VDC-in
PPC-Performance-18.5-Einbau--C PPC-Performance-18.5-Einbau--C PPC-Performance-18.5-Einbau--C PPC-Performance-18.5-Einbau--C PPC-Performance-18.5-Einbau--C
PPC-Performance-18.5-Einbau--C
Prime Panel Performance 18.5" Einbau, IP65 Front, 1920x1080, 350cd/m2, PCAP Touch, Intel Celeron G4900T CPU, 8GB DDR4 RAM, 128GB M.2 SSD, 2xDP, 1xDVI-D, 2xGbE LAN, 4xUSB 3.2, 4xUSB 2.0, 1xCOM, 1xPCIe x16, 18-26VDC-in
Select-Panel-Client-10.1--C Select-Panel-Client-10.1--C Select-Panel-Client-10.1--C Select-Panel-Client-10.1--C Select-Panel-Client-10.1--C
Select-Panel-Client-10.1--C
Select Panel Client 10.1" Einbau, IP54 Front, 1280x800, 500cd/m2, PCAP Touch, i.MX 8M Plus Quad-Core SoC, 2GB LPDDR4 RAM, 8GB eMMC, 1xGbE PoE LAN, 1xUSB-C 3.0, 2xUSB 2.0, 48V PoE DC-in, Prime OS
PPC-Pico-15.6-Anbau--C PPC-Pico-15.6-Anbau--C PPC-Pico-15.6-Anbau--C PPC-Pico-15.6-Anbau--C PPC-Pico-15.6-Anbau--C
PPC-Pico-15.6-Anbau--C
Prime Panel Pico 15.6" Anbau, IP65 Full, 1920x1080, 450cd/m2, PCAP Touch, Intel Atom x7-E3950 CPU, 8GB DDR3L, 128GB SSD mSATA, 1xDP/1xHDMI, 2xGbE LAN, 4xUSB, 1xRS232/422/485, 12-32VDC-in, 3-Jahre Garantie (PPI1100AD_156)
W15IM3S-ELA2 W15IM3S-ELA2 W15IM3S-ELA2
Winmate
W15IM3S-ELA2
15.6" Fanless Panel PC, EL Series, IP65 Front, 1366x768, 400cd/m2, PCAP Touch, ARM Cortex-A53 Quad-Core 2.0GHz SoC, 4GB LPDDR4 RAM, 32GB eMMC, 1xGbE LAN, 1xCOM, 1xUSB 2.0, 1xMicro-USB OTG, 12-24VDC-in, Android
PPC-315SW-PDI7A
Advantech
PPC-315SW-PDI7A
15.6" Fanless PPC-315SW Panel PC, IP66 Front, 1920x1080, 350cd/m2, PCAP Touch, Intel Core i7-1365UE CPU, Up to 32GB DDR5 RAM, DP, 2x2.5GbE LAN, 3xUSB 3.2, 1xUSB 2.0, 2.5" Drive Bay, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, Audio, 24VDC-in
PPC-312S-RX7A PPC-312S-RX7A PPC-312S-RX7A
Advantech
PPC-312S-RX7A
12.1" Fanless PPC-312S Panel PC, IP66 Front, 1024x768, 500cd/m2, Resistive Touch, Intel Atom x7433RE 3.4GHz CPU, Up to 16GB DDR5 RAM, DP, 2x2.5GbE LAN, 2xUSB 3.2, 2xUSB 2.0, 2xCOM, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, Audio, 24VDC-in
PPC-318SW-PDI3A
Advantech
PPC-318SW-PDI3A
18.5" Fanless PPC-318SW Panel PC, IP66 Front, 1366x768, 450cd/m2, PCAP Touch, Intel Core i3-1315UE CPU, Up to 32GB DDR5 RAM, DP, 2x2.5GbE LAN, 3xUSB 3.2, 1xUSB 2.0, 2.5" Drive Bay, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, Audio, 24VDC-in
PPC-321SW-PDI5A
Advantech
PPC-321SW-PDI5A
21.5" Fanless PPC-321SW Panel PC, IP66 Front, 1920x1080, 250cd/m2, PCAP Touch, Intel Core i5-1335UE CPU, Up to 32GB DDR5 RAM, DP, 2x2.5GbE LAN, 3xUSB 3.2, 1xUSB 2.0, 2.5" Drive Bay, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, Audio, 24VDC-in
PPC-312S-PX7A PPC-312S-PX7A PPC-312S-PX7A
Advantech
PPC-312S-PX7A
12.1" Fanless PPC-312S Panel PC, IP66 Front, 1024x768, 500cd/m2, PCAP Touch, Intel Atom x7433RE 3.4GHz CPU, Up to 16GB DDR5 RAM, DP, 2x2.5GbE LAN, 2xUSB 3.2, 2xUSB 2.0, 2xCOM, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, Audio, 24VDC-in
PPC-321SW-PN9A PPC-321SW-PN9A PPC-321SW-PN9A PPC-321SW-PN9A PPC-321SW-PN9A
Advantech
PPC-321SW-PN9A
21.5" Fanless PPC-321SW Panel PC, IP66 Front, 1920x1080, 250cd/m2, PCAP Touch, Intel N97 2.0GHz CPU, Up to 16GB DDR5 RAM, DP, 2x2.5GbE LAN, 2xUSB 3.2, 2xUSB 2.0, 2.5" Drive Bay, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, Audio, 24VDC-in
