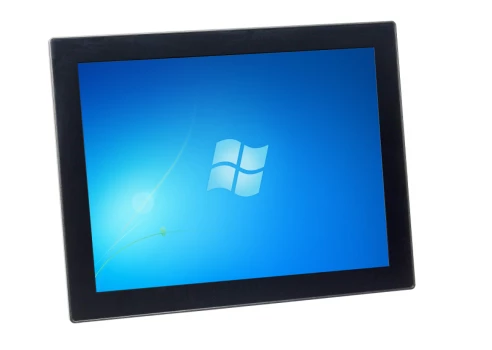

PPC-150P-D3G5N-7CP
ICOP
SKU: 56704700
Fanless Panel PC with 15" TFT LCD, PCAP touch, Vortex86DX3 1GHz CPU, 2GB DDR3, SATA Slim slot, CF slot, 7xCOM, 3xUSB 2.0, PS/2, 1x100Mbit LAN with PoE, Audio, 12-24V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LED
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
600~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
Vortex86DX3
Socket
CPU onboard
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
ECC
No
Default on Board Memory
2 GB
Maximum Memory
2 GB
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
7
RS-232/422/485
7
USB Total
3
USB 2.0
3
Audio
Audio Controller
Realtek ALC262
Drive interfaces
CompactFlash Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off, 1xReset
Connectors
Connectors
PS/2 Keyboard, 2xRJ45 Ethernet, 3xUSB, Line Out, DC Input
System Power Input
Input Voltage DC
12..24 V
Power Consumption
24 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows CE 6.0, Windows XP, Windows Embedded Standard 7, Windows Embedded Standard 2009, Linux OS
Dimensions and weight
Width
354.85 mm
Height
280.85 mm
Depth
54.9 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Vibration And Shock
IEC 60068-2-27
Dimensions
Net Weight
3.8 kg
Gross Weight
5 kg
