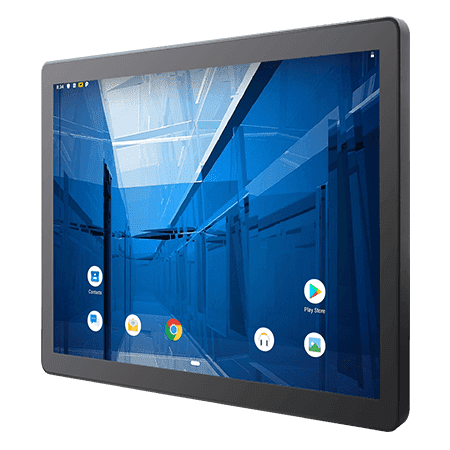

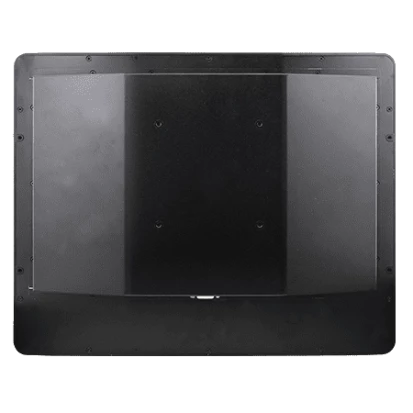

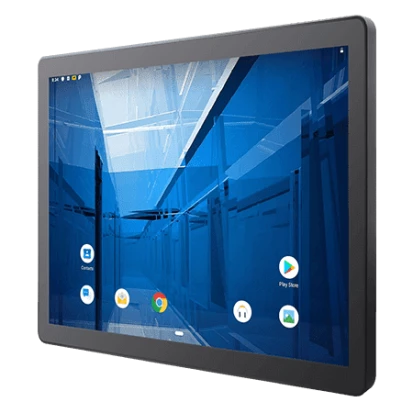

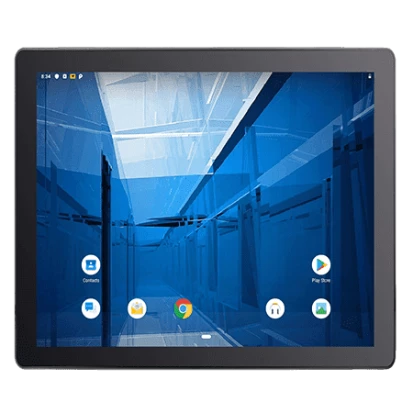

R19IM3S-GCM1
Winmate
SKU: 80156400
19" Fanless Panel PC, IP65 Front, MIL-STD-810H Cert., 1280x1024, 250 cd/m2, PCAP Touch, ARM A53 Quad-Core 2.0GHz SoC, 4GB LPDDR4 RAM, 32GB eMMC, 1xGbE LAN, 2xUSB 2.0, 1xMicroUSB, 1xCOM, MicroSD Slot, 12VDC-in with 84W Power Adapter, Android
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Plastic component
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
250 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex-A53
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
3
USB 2.0
3
Drive interfaces
MicroSD
1
Installed drive
Drive Type
Flash
Storage Form-Factor
eMMC
1st Storage Capacity
32 GB
Connectors
Connectors
DB9, RJ45 Ethernet, 2xUSB, DC input (terminal block), 1xMicro USB, MicroSD card slot
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
84 W
Software
Operating System Installed
Android
Dimensions and weight
Width
445 mm
Height
370 mm
Depth
51 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Dimensions
Net Weight
4.2 kg
Gross Weight
5 kg
