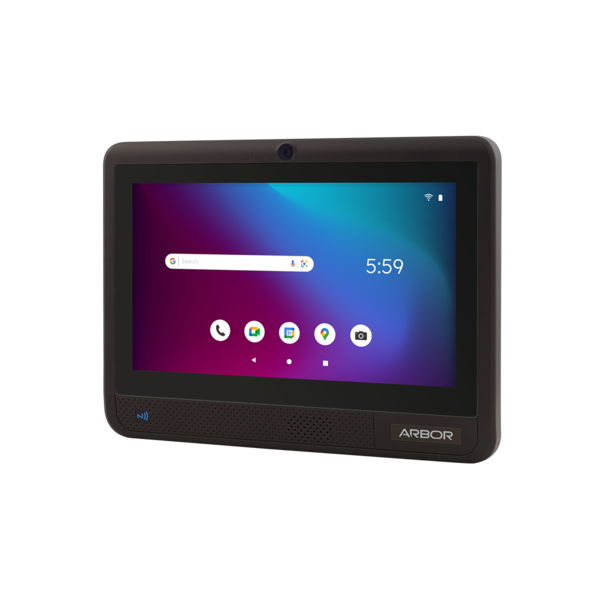

IOT-800N-G420-LTE

IOT-800N-G420-LTE

Arbor
SKU: 80341300
8" Fanless Panel PC, IP54/IK05 Front, 1280x720, PCAP Touch, 450cd/m2, MediaTek Genio 420 SoC, 4GB LPDDR5 RAM, 64GB UFS, 1xGbE LAN (RJ45/M12), 2xUSB 2.0, 1xUSB-C, 1xCOM, 6-bit DIO, CAN, MicroSD, Wi-Fi6/BT5.3/LTE/GPS, NFC, Audio, 9-36VDC-in, Android 16
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall VESA 75
Protection Level of Front Side (Panel)
IP54
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1280x720 Dots
Aspect Ratio
16:9
Brightness
450 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
MediaTek MT8371LV (Genio 420)
Socket
CPU onboard
Max CPU frequency
1.8 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Integrated with Chipset
Total Ethernet
1
10/100 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac/ax
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
3
USB 2.0
2
USB v3.x
1
Digital Input-Output
Channels of DIO
6
Industrial Interfaces
CAN Port
1
Drive interfaces
MicroSD
1
Installed drive
Drive Type
Flash
Storage Form-Factor
UFS
1st Storage Capacity
64 GB
Extension Slots
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G
Additional Functions
GPS
GPS, GLONASS
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DB9, RJ45 Ethernet, 2xUSB, Line Out, SIM Card Slot, DC input (terminal block), DIO (terminal block), CAN (terminal block), MicroSD card slot, USB type C, M12 LAN
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Android
Dimensions and weight
Width
218.16 mm
Height
162.67 mm
Depth
46.5 mm
Operating Conditions
Operating Temperature
-20..70 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC
Vehicle
E-Mark
Dimensions
Net Weight
0.94 kg
Gross Weight
1.3 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall VESA 75
Protection Level of Front Side (Panel)
IP54
Type
Fanless
Display
