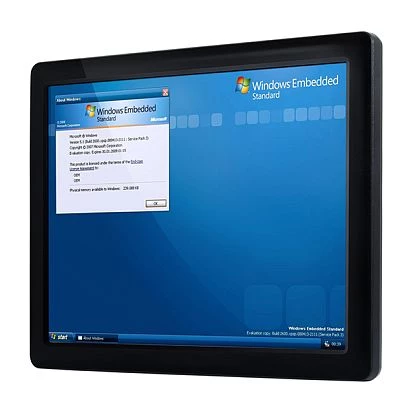

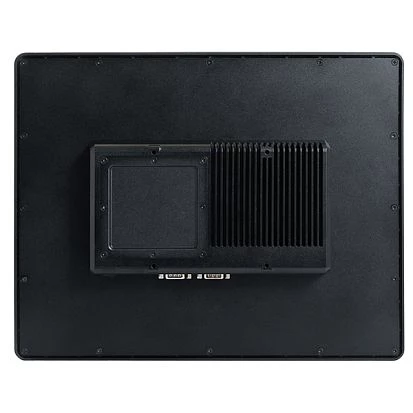

PPC-104T-D2N3N
ICOP
SKU: 07173700
Fanless Panel PC with 10.4" TFT LCD, Touch Screen, Vortex86DX2 933MHz CPU, 512MB DDR2, SATA Slim slot, CF slot, 2xCOM, 3xUSB 2.0, PS/2, 1xLAN, Audio, 12-24V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.4 "
Maximum resolution
800x600 Dots
Aspect Ratio
4:3
Brightness
500 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Vortex86DX2
Max CPU frequency
0.93 GHz
Chipset
Chipset
Vortex86 System-on-Chip
Memory
Form-factor
DDR2
Default on Board Memory
0.5 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
3
USB 2.0
3
Audio
Audio Controller
Realtek ALC262
Drive interfaces
mSATA
1
CompactFlash Slots
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off
Connectors
Connectors
2xDB9, PS/2 Keyboard, RJ45 Ethernet, 3xUSB, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Consumption
24 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
MS DOS, Windows CE 6.0, Windows XP, Windows Embedded Standard 7, Linux OS, Windows 7 Professional
Dimensions and weight
Width
273.4 mm
Height
219.8 mm
Depth
49 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Net Weight
1.75 kg
Gross Weight
2.5 kg
