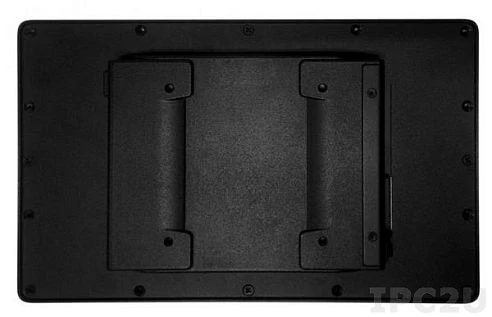

PMX-090T-8A
ICOP
SKU: 55598000
9" Panel PC, Vortex86MX+ 1GHz CPU, 1GB DDR2 RAM, LAN, 2xUSB, RS232/422/485, Line-Out, Compact Flash Slot, MicroSD Slot, +8..+35V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
9 "
Maximum resolution
1024x600 Dots
Aspect Ratio
16:9
Brightness
300 Cd/m2
Contrast Ratio
500~1
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Vortex86MX+
Max CPU frequency
0.93 GHz
Memory
Form-factor
DDR2
Default on Board Memory
1 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Integrated with Chipset
Total Ethernet
1
10/100 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
2
Audio
Audio Controller
Realtek ALC262
Drive interfaces
CompactFlash Slots
1
MicroSD
1
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off
Connectors
Connectors
DB9, PS/2 Keyboard, RJ45 Ethernet, 2xUSB, Audio Out, DC input (terminal block), MicroSD card slot, CompactFlash
System Power Input
Input Voltage DC
8..35 V
Power Consumption
7.5 W
Software
Operating System Compatibility
MS DOS, Windows CE 6.0, Windows XP, Linux OS
Dimensions and weight
Width
236.6 mm
Height
146 mm
Depth
35 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Safety
TUV
Dimensions
Net Weight
1.5 kg
Gross Weight
4 kg
