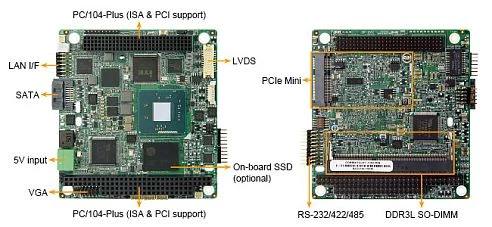

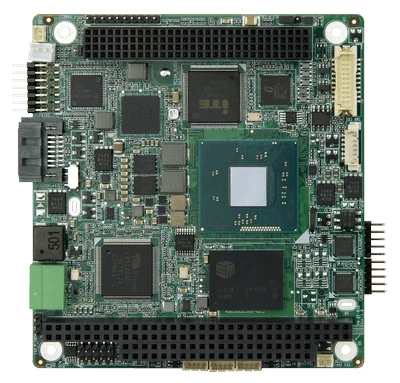

PM-BT-N28071
IEI
SKU: 08122000
PC/104-Plus Single Board Computer with Intel Atom N2807 SoC with DDR3L, VGA, LVDS,GbE, USB2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
End-of-life product
System Architecture
Form Factor
PC/104
Construction
Type
Fanless
CPU
Processor Installed
Intel Celeron N2807
Max CPU frequency
2.16 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Ethernet
Controller Type
Intel i210
Total Ethernet
1
Interfaces
COM Total
2
RS-232/422/485
2
Digital Input-Output
Channels of DIO
8
Extension Slots
Mini-PCIe/Mini Card
1
luPC/104-Ps
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
10-pin DIO, 3x4-pin USB 2.0, 10-pin RS-232/422/485, 10-pin VGA, 20-pin LVDS, 16-pin LAN
Dimensions and weight
Width
96 mm
Length
90 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.5 kg
