VDX3-6755-2G

VDX3-6755-2G

ICOP
SKU: 56399800

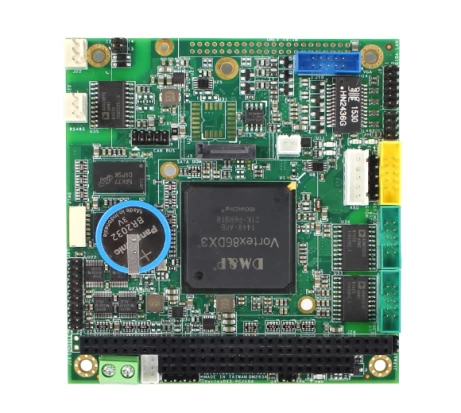

PC/104 Vortex86DX3 1GHz CPU Module with 2GB DDR3 RAM, VGA, LVDS, 2xLAN, 3xCOM, 2xUSB,CANBus(optional), operating temperature -20..70 C
Price on request
Available on order
Available on order
System Architecture
Form Factor
PC/104
CPU
Processor Installed
Vortex86DX3
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
2 GB
Assembly
Fixed on Board
Graphic
Interfaces
LVDS, VGA
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
3
RS-232/485
3
USB Total
2
USB 2.0
2
Audio
Audio Controller
Realtek ALC262
Connectors
Connectors
3xDB9, DB15 VGA, LVDS, RJ45, 2xUSB
Dimensions and weight
Width
96 mm
Length
90 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Gross Weight
0.8 kg
