VEX2-6454-4C4EE
ICOP
SKU: 56891800

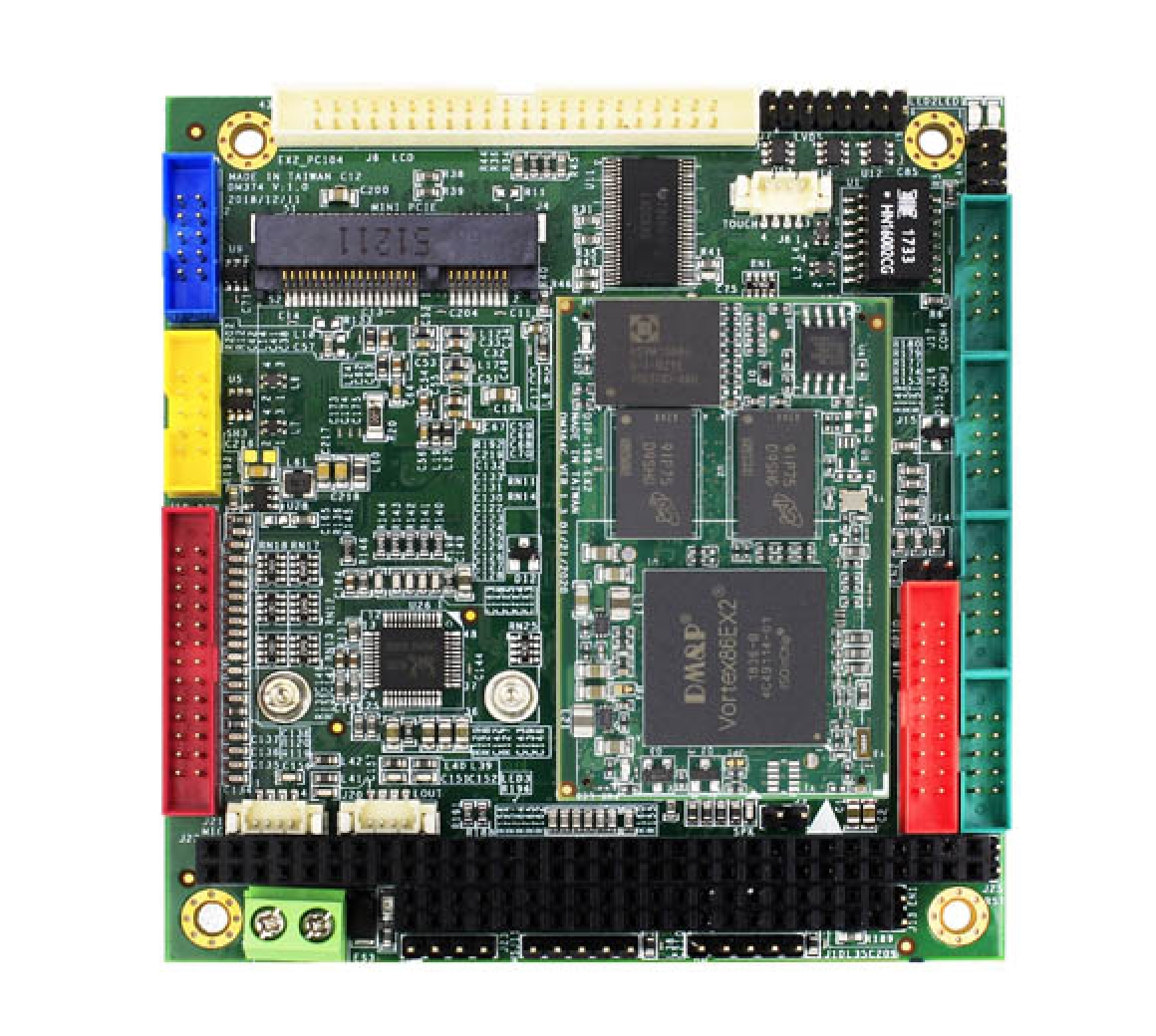

PC/104 Vortex86EX2 600MHz CPU Module with 1GB DDR3 RAM, 4GB eMMC, VGA, LVDS, LCD, 1x100Mbps LAN, 4xCOM, 2xUSB, Paraller port, PS/2, 16-bit GPIO, Audio, 8-bit ISA, Mini PCIe, Operating temp -20..70 C
Price on request
Available on order
Available on order
CPU
Processor Installed
Vortex86EX
Max CPU frequency
0.6 GHz
Memory
Form-factor
DDR3
Default on Board Memory
1 GB
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
LVDS, LCD, VGA
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
Audio
Audio Controller
Realtek ALC262
Extension Slots
Mini-PCIe/Mini Card
1
Software
Operating System Compatibility
Windows Embedded Compact 7, Linux OS, FreeBSD, QNX
Dimensions and weight
Width
90 mm
Length
96 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Gross Weight
0.8 kg
