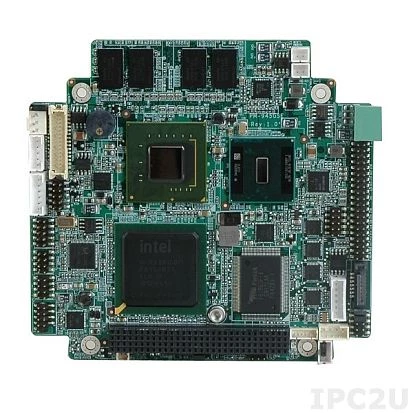

PM-945GSE-N270
IEI
SKU: 06389900
PCI-104 Intel ATOM N270 1.6GHz CPU, 1GB RAM, with VGA/LVDS, LAN, 4xCOM, 4xUSB 2.0, CompactFlash Socket, 1xPCI-104, Audio
End-of-life product
System Architecture
Form Factor
PCI-104
Construction
Type
Fanless
CPU
Processor Installed
Intel Atom N270
Max CPU frequency
1.6 GHz
Chipset
Chipset
Intel 945GSE+ICH7M
Memory
Form-factor
DDR2
Socket Type
Soldered
ECC
No
Default on Board Memory
1 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Intel 945 GSE
Interfaces
LVDS, VGA
Ethernet
Controller Type
Realtek RTL8102E
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
5
RS-232
4
RS-422/485
1
USB Total
4
USB 2.0
4
Audio
Audio Controller
Realtek ALC655
Drive interfaces
CompactFlash Slots
1
Extension Slots
Total
1
PCI-104
1
Additional Functions
Watchdog timer type
Software
Software
Operating System Compatibility
Windows XP, Windows Vista, Ubuntu 8.10, Fedora
Dimensions and weight
Width
108.59 mm
Length
115.57 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.5 kg
