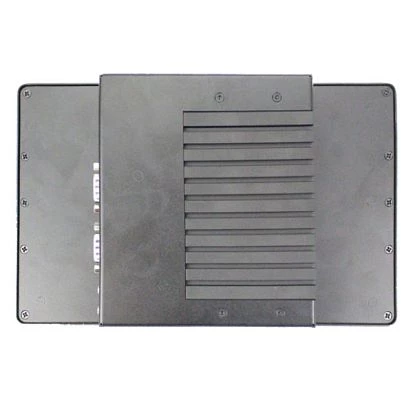

PINT-090T-APL-N4-4G
ICOP
SKU: 56997000
Fanless Panel PC with 9" 1024x600 TFT LCD, Resistive touch, Intel Apollo Lake N4200 Quad-Core CPU, 4GB DDR3L, M.2 M-Key 2242, HDMI, 2xCOM, 2xUSB 3.0, 1xUSB 2.0, 1xGbit LAN, Audio, 12V DC-In, Operating temperature 0..+60C
Price on request
Available
Available
Construction
Mounting Configuration
Panel
Protection Level of Front Side (Panel)
IP65
Display
Display Type
LCD TFT
Diagonal
9 "
Maximum resolution
1024x600 Dots
Brightness
300 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Apollo Lake
Processor Installed
Intel Pentium N4200
Max CPU frequency
2.5 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
3
USB 2.0
1
USB v3.x
2
Extension Slots
M.2
1
System Power Input
Input Voltage DC
12..12 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
237 mm
Height
146 mm
Depth
45 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Net Weight
3 kg
Gross Weight
4 kg
