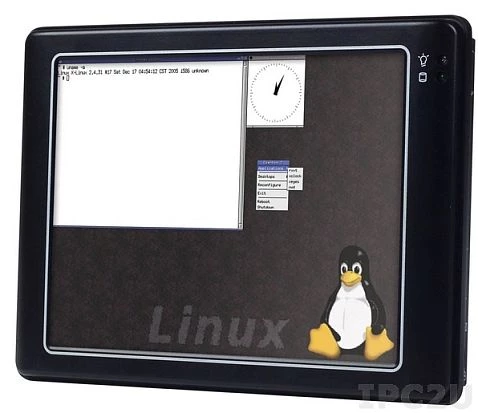

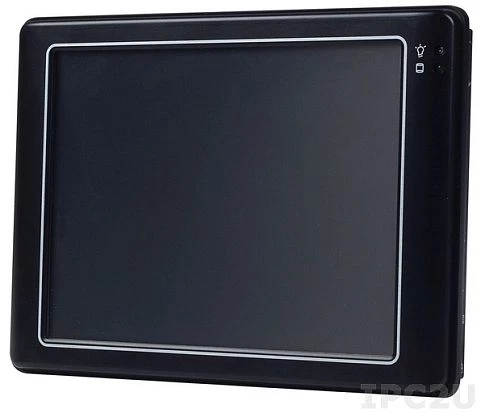

PDX2-057T-5A
ICOP
SKU: 56408100
5.7" Panel PC, TFT LCD 640x480, Resistive Touch Screen, 500 nits, Vortex86DX2 933 MHz CPU, 1GB DDR2, 1xLAN, 1xCOM, 2xUSB, Compact Flash, 5VDC, 20W Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Panel, Wall VESA 75
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
5.7 "
Maximum resolution
640x480 Dots
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Vortex86DX2
Max CPU frequency
0.93 GHz
Memory
Form-factor
DDR2
Default on Board Memory
1 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Integrated with Chipset
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
2
Drive interfaces
CompactFlash Slots
1
MicroSD
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xOn/Off LED, Power LED
Controls
On/Off
Connectors
Connectors
PS/2 Keyboard/Mouse, RJ45
System Power Input
Input Voltage DC
5..5 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
MS DOS, Windows CE 5.0, Windows CE 6.0, Windows XP, Linux OS
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Net Weight
2 kg
Gross Weight
2 kg
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Panel, Wall VESA 75
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
5.7 "
Maximum resolution
640x480 Dots
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Vortex86DX2
Max CPU frequency
0.93 GHz
Memory
Form-factor
DDR2
Default on Board Memory
1 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Integrated with Chipset
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
2
Drive interfaces
CompactFlash Slots
1
MicroSD
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xOn/Off LED, Power LED
Controls
On/Off
Connectors
Connectors
PS/2 Keyboard/Mouse, RJ45
System Power Input
Input Voltage DC
5..5 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
MS DOS, Windows CE 5.0, Windows CE 6.0, Windows XP, Linux OS
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Net Weight
2 kg
Gross Weight
2 kg
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Panel, Wall VESA 75
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
5.7 "
Maximum resolution
640x480 Dots
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Vortex86DX2
Max CPU frequency
0.93 GHz
Memory
Form-factor
DDR2
Default on Board Memory
1 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Integrated with Chipset
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
2
Drive interfaces
CompactFlash Slots
1
MicroSD
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xOn/Off LED, Power LED
Controls
On/Off
Connectors
Connectors
PS/2 Keyboard/Mouse, RJ45
System Power Input
Input Voltage DC
5..5 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
MS DOS, Windows CE 5.0, Windows CE 6.0, Windows XP, Linux OS
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Net Weight
2 kg
Gross Weight
2 kg
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Panel, Wall VESA 75
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
5.7 "
Maximum resolution
640x480 Dots
Brightness
500 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
Processor Installed
Vortex86DX2
Max CPU frequency
0.93 GHz
Memory
Form-factor
DDR2
Default on Board Memory
1 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Integrated with Chipset
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
2
Drive interfaces
CompactFlash Slots
1
MicroSD
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xOn/Off LED, Power LED
Controls
On/Off
Connectors
Connectors
PS/2 Keyboard/Mouse, RJ45
System Power Input
Input Voltage DC
5..5 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
MS DOS, Windows CE 5.0, Windows CE 6.0, Windows XP, Linux OS
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Net Weight
2 kg
Gross Weight
2 kg
