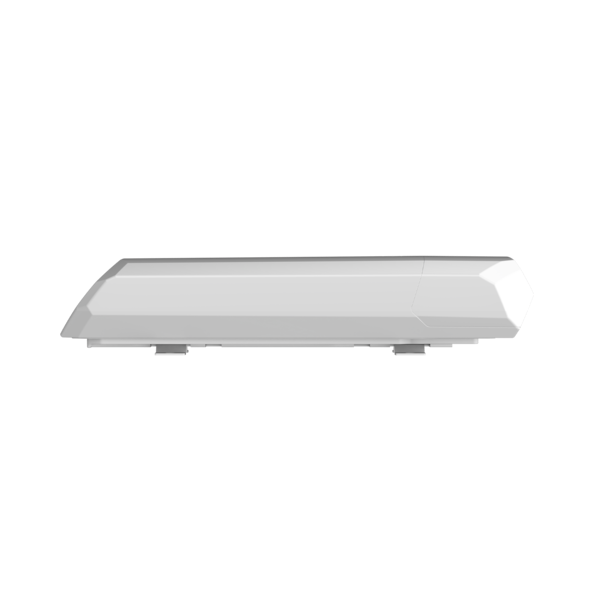

OTD144
Teltonika Networks
SKU: 80349500
Outdoor Wi-Fi 4 Router, IP55, Mediatek 580 MHz, 2x10/100Base-TX with 1xPoE, 2xSIM, 42,5..57 VDC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
PoE 10/100 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Wi-Fi Operation Mode
Access point
Antenna characteristics
Cellular interfaces
4G
Extension Slots
SIM Card slots
2, Mini-SIM
Supported Protocols
Industrial Protocols
Modbus TCP
Protocol Layer 3
VRRP, Static Routing, RIP V1/V2, OSPF, BGP
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, Syslog, Telnet, UDP, DNS, DHCP, SNMP, NTP, ARP, TCP, FTP, SFTP, ICMP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+, PPP, PPPoE
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
42..57 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Pole Mount
Protection Level of Chassis
IP55
Dimensions and weight
Width
110 mm
Depth
49.3 mm
Height
235 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, WEEE, EAC, CB, rohs
Dimensions
Net Weight
0.3 kg
Gross Weight
0.5 kg
