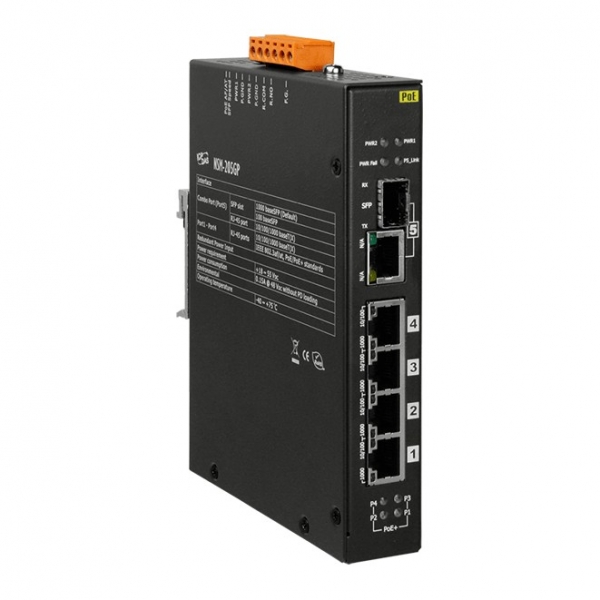

4+1G Combo Port Gigabit Unmanaged Ethernet Switch with 4 IEEE 802.3af/at PoE+ ports (RoHS)
NSM-205GP
ICP DAS
SKU: 06620100
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
Type 10/100/1000 Mbit/s
Combo (RJ-45 or SFP), 4xRJ-45
PoE+ 10/100/1000 Mbit/s
4
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@30V DC
Expansion Module
Supported Module
SFP-1G, SFP-1FE
System Power Input
Redundant power input
Yes
Input Voltage DC
18..55 V
Power Supply Reserve input Voltage DC
18..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
28 mm
Depth
122 mm
Height
160 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Gross Weight
0.6 kg
