MVS-5600-3BK

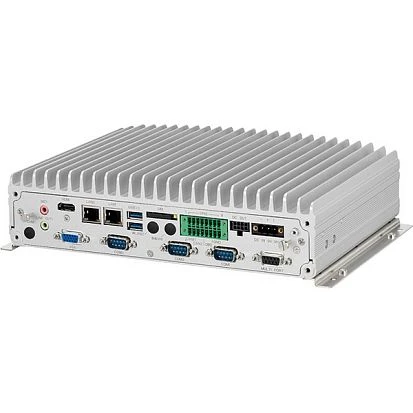

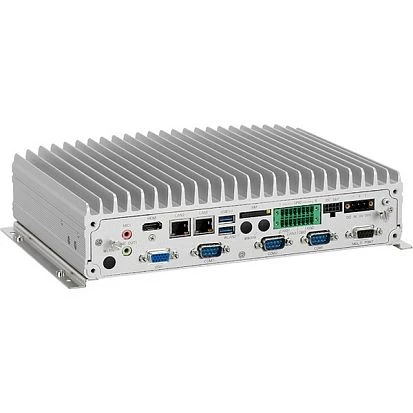

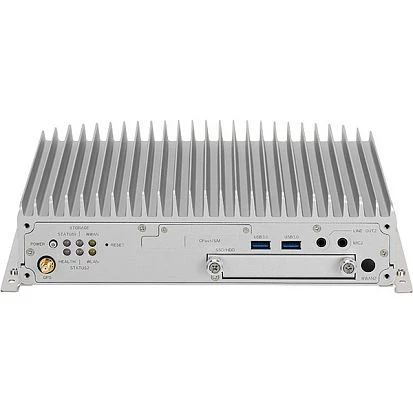

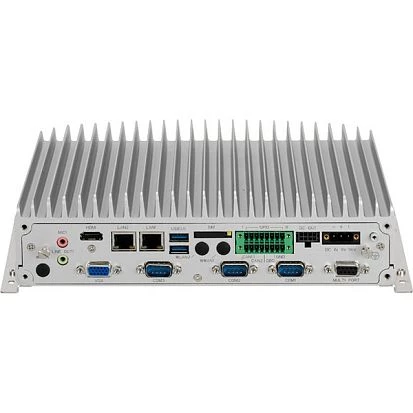

MVS-5600-3BK In-Vehicle PC uses Intel Core i3/i7 CPU, up to 16GB of DDR3 RAM, 3xSIM, Dual LAN, Navigation, 4xUSB 3.0, CANBus As an embedded server, the MVS-5600-3BK combines an above-average performance with one unusually extensive networking and a sturdy design. It uses an Intel Core i7 or i3 processor of the sixth generation "Skylake" and a dual channel RAM for very fast access times. In addition to a very high number of integrated interfaces, the In-Vehicle allows computer the individual extension over several extension slots. Through an Intel Core i7-6600U with dual core and four threads and up to 3.40 GHz clock frequency in the turbo boost mode, the MVS-5600-3BK develops a very high computing power. The 2 GB DDR3 RAM on two memory banks can be increased up to 16 GB, in order to also extremely data-intensive tasks in real time. The storage media include an internal SSD/HDD drive like also an external, shielded CFast socket is available. The expansion slots of the MVS-5600-3BK include two Mini PCIe Sockets in Full Size and another in Half Size. The equipment of the MVS-5600-3BK with integrated ports is unusually extensive and versatile. The Embedded In-Vehicle PC has two Ethernet LAN ports for communication 10/100/1000 Mbps bandwidth, optional WLAN and a redundant WWAN connection over up to three SIM cards. The connection to the vehicle electronics and external hardware takes place serially over three COM ports, four times USB 3.0, 8-bit GPIO with 4 channels DI/DO and CAN Bus 2.0B each. The position determination carrying out via an integrated receiver with support for GPS, Beidou, Galileo, Gloness and QZSS and optional Dead Reckoning as well as acceleration sensors and TPM. The MVS-5600-3BK is designed to operate in harsh environments. To his specifications and certifications include MIL-STD-810G for vibration, permanent vibration and vibration impact and a very wide temperature range. The power supply in a voltage range of 9VDC to 36 VDC uses a power monitor with shut-down on critical drops and can can be supplemented by a Li-Ion battery as emergency power. Its high flexibility makes the MVS-5600-3BK is suitable for a wide variety of scenarios, including data acquisition, fleet management, mobile communications or mobile IT infrastructure.
