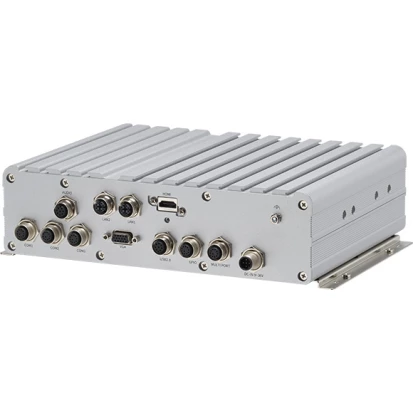

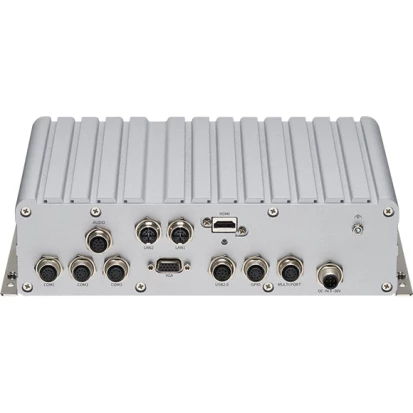

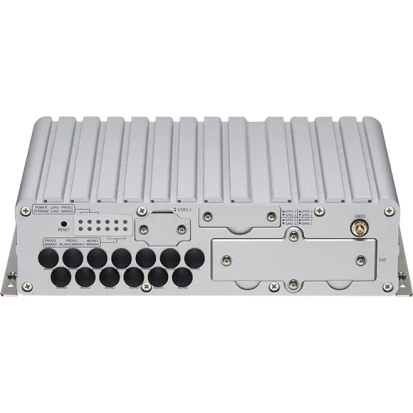

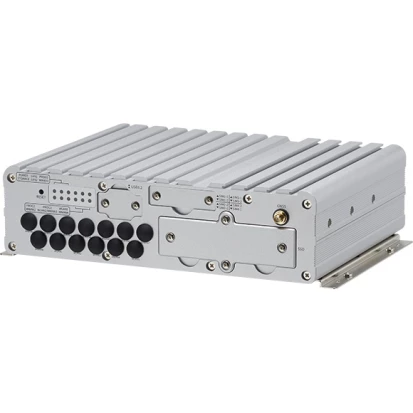

VTC-6231-IP
NEXCOM
SKU: 57961600
Fanless In-Vehicle Computer, Full IP66, Intel Atom x7433RE 1.5GHz CPU,Up to 16GB DDR5 RAM, VGA/HDMI, 2xUSB 3.2, M12 Ports: (2x2.5GbE LAN, 3xCOM, 2xUSB, GPIO, Audio, CAN, DC-in), 1x2.5" Drive Bay, 2xMini-PCIe, 2xM.2 Key-B, 1xM.2 Key-E, 9-36VDC-in
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP66
Type
Fanless
CPU
Socket
FCBGA1264
Max CPU frequency
3.4 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Intel UHD Graphics
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-232/422/485
2
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
1
Drive interfaces
SATA 3
1
mSATA
1
Storage Cage
2.5" Cage External
1
Extension Slots
Total
5
M.2
3
M.2 Form Factor
2230 E, 3052 B, 3042 B, 3050 B
Mini-PCIe/Mini Card
2
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
Controls
On/Off, 1xReset
Connectors
Connectors
DB15 VGA, HDMI, 2xUSB, 3xM12, M12 USB, M12 Audio, M12 DC-in, M12 DIO, 2xM12 LAN
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10, Linux kernel 4.x, Windows 11
Dimensions and weight
Width
260 mm
Height
70 mm
Depth
201.6 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
10-90%
Vibration
IEC 60068-2-64, 2G for SSD - Operating: MIL-STD-810H, 514.8C Procedure 1, Category 4 - Storage: MIL-STD-810H, 514.8E Procedure 1, Category 24
Shock
Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g - Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g
Standards and Certifications
Certifications
CE, FCC Class A
Automotive
e13 Mark
Dimensions
Net Weight
2.8 kg
Gross Weight
3.4 kg
