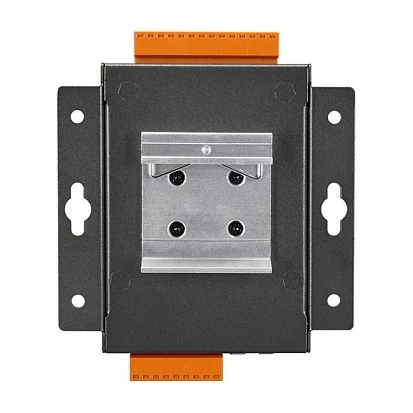

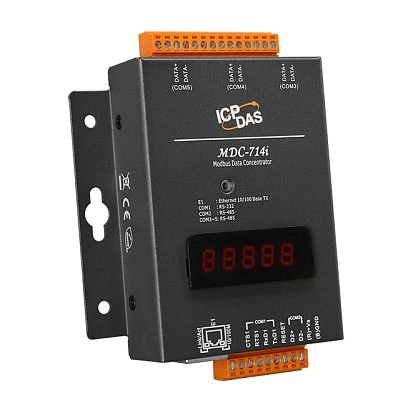

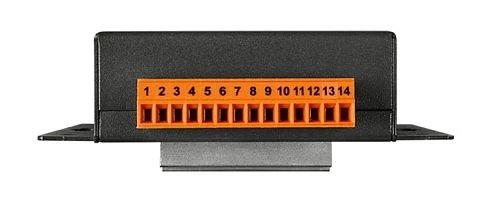

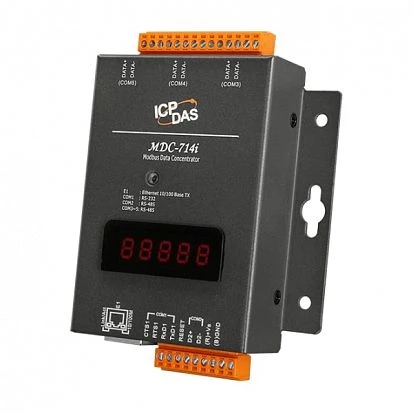

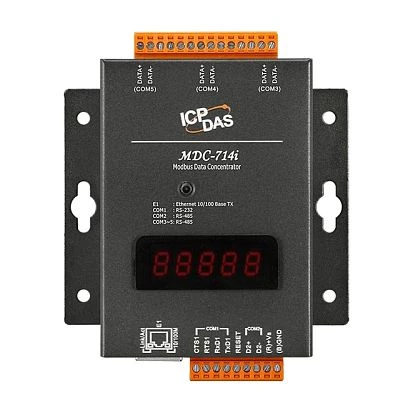

MDC-714i

MDC-714i

ICP DAS
SKU: 09302800
Modbus data concentrator with 1x Ethernet and 1 x RS-232, 1 x RS-485, 3 x isolated RS-485 (RoHS)
Price on request
Available
Available
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
5
RS-232
1
RS-485
4
Isolation of COM Ports
2.5 kV (RS-485)
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU master, Modbus RTU slave
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Dimensions and weight
Width
102 mm
Depth
28 mm
Height
125 mm
Dimensions
Net Weight
0.16 kg
Gross Weight
0.35 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
5
RS-232
1
RS-485
4
Isolation of COM Ports
2.5 kV (RS-485)
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU master, Modbus RTU slave
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Dimensions and weight
Width
102 mm
Depth
28 mm
Height
125 mm
Dimensions
Net Weight
0.16 kg
Gross Weight
0.35 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
5
RS-232
1
RS-485
4
Isolation of COM Ports
2.5 kV (RS-485)
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU master, Modbus RTU slave
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Dimensions and weight
Width
102 mm
Depth
28 mm
Height
125 mm
Dimensions
Net Weight
0.16 kg
Gross Weight
0.35 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
5
RS-232
1
RS-485
4
Isolation of COM Ports
2.5 kV (RS-485)
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU master, Modbus RTU slave
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Dimensions and weight
Width
102 mm
Depth
28 mm
Height
125 mm
Dimensions
Net Weight
0.16 kg
Gross Weight
0.35 kg
Documentation
Datasheet MDC-700 User Manual MDC-700 Quick Start MDC-700 Series
Software
eSearch Utility
Documentation
Datasheet MDC-700 User Manual MDC-700 Quick Start MDC-700 Series
Software
eSearch Utility
Documentation
Datasheet MDC-700 User Manual MDC-700 Quick Start MDC-700 Series
Software
eSearch Utility
Documentation
Datasheet MDC-700 User Manual MDC-700 Quick Start MDC-700 Series
Software
eSearch Utility
