MDC-211-ZT

MDC-211-ZT

ICP DAS
SKU: 08334400

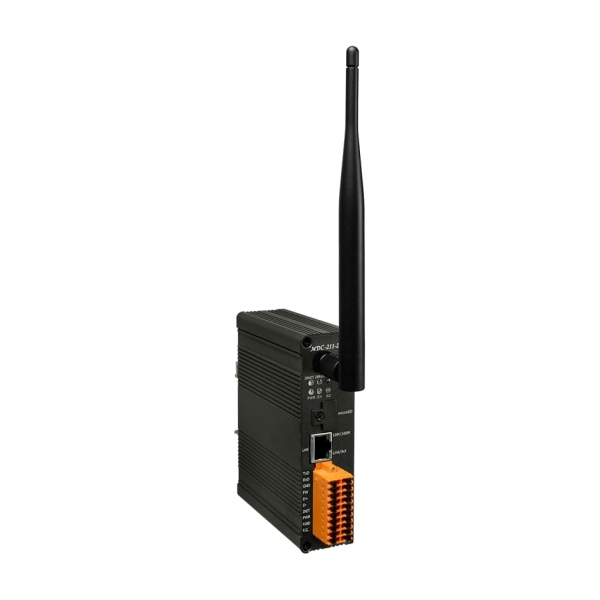

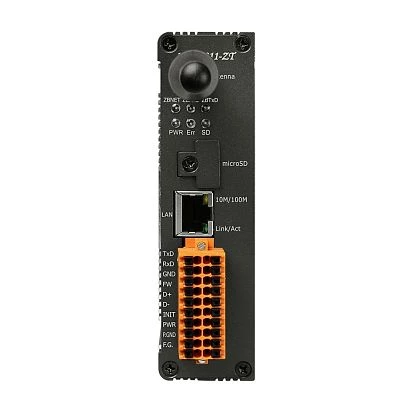

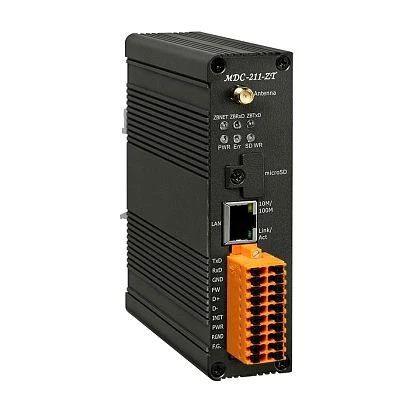

ZigBee Modbus data concentrator with 1xRS-485, 1xRS-232, 1xLAN, IEEE 802.11, ZigBee 2.405GHz/ 2.48GHz, 11dBm/12.59mW (FCC) (max. 19 dBm/79.43mW)
Price on request
Available
Available
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
RS-232
1
RS-485
1
RF Interface
Radio Standard
ZigBee (Slave, Router)
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU master, Modbus RTU slave
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration

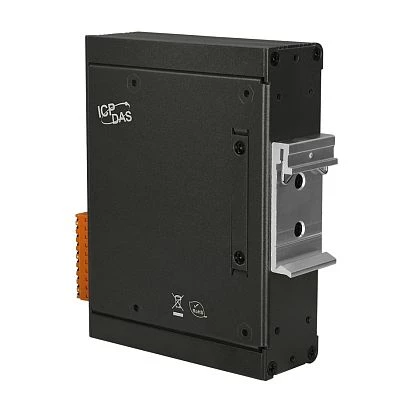

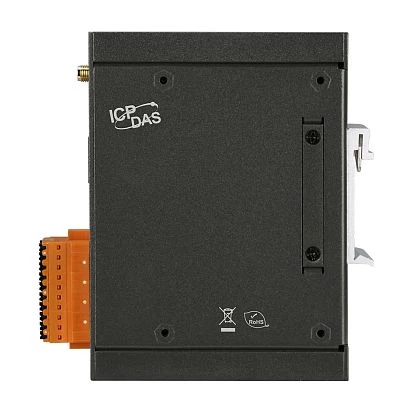

DIN-Rail mount
Dimensions and weight
Width
120 mm
Depth
116 mm
Height
33 mm
Dimensions
Net Weight
0.16 kg
Gross Weight
0.35 kg
