MDC-714

MDC-714

ICP DAS
SKU: 06856600

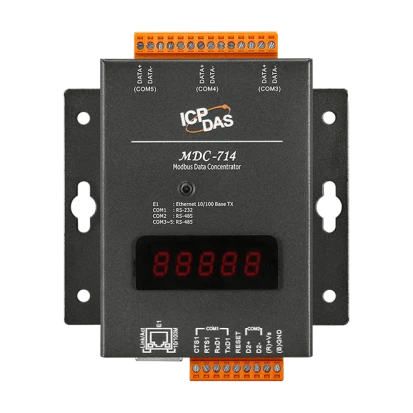

Modbus data concentrator with 1x Ethernet and 1 x RS-232, 4 x RS-485 (RoHS)
Price on request
Available
Available

Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
5
RS-232
1
RS-485
4
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus RTU master, Modbus RTU slave
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Dimensions and weight
Width
102 mm
Depth
28 mm
Height
125 mm
Dimensions
Net Weight
0.45 kg
Gross Weight
0.45 kg

Documentation
Configuration_MDC-714_RUS Datasheet MDC-700 User Manual MDC-700 Quick Start MDC-700 Series
Software
eSearch Utility
