LYNC-715-1900G4

Arbor
SKU: 07499400

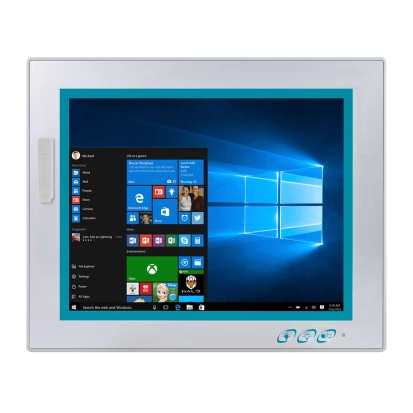

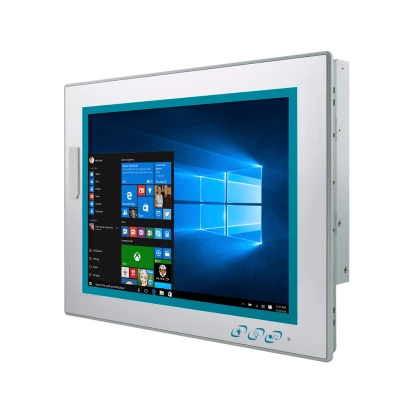

15" Fanless Industrial Panel PC, 1024x768 TFT LCD, 420cd/m2, Resistive Touch, Intel Celeron J1900 2.0GHz CPU, 4GB DDR3 RAM, DVI-I, 2xGbE LAN, 4xRS232/485, 5xUSB 2.0, CFast Slot, 1x2.5" Drive Bay, 1xFull-size Mini-card, 9-36VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
420 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
FCBGA1170
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek 8111E
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/485
2
USB Total
5
USB 2.0
5
Drive interfaces
SATA 3
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
Control Buttons
Connectors
Connectors

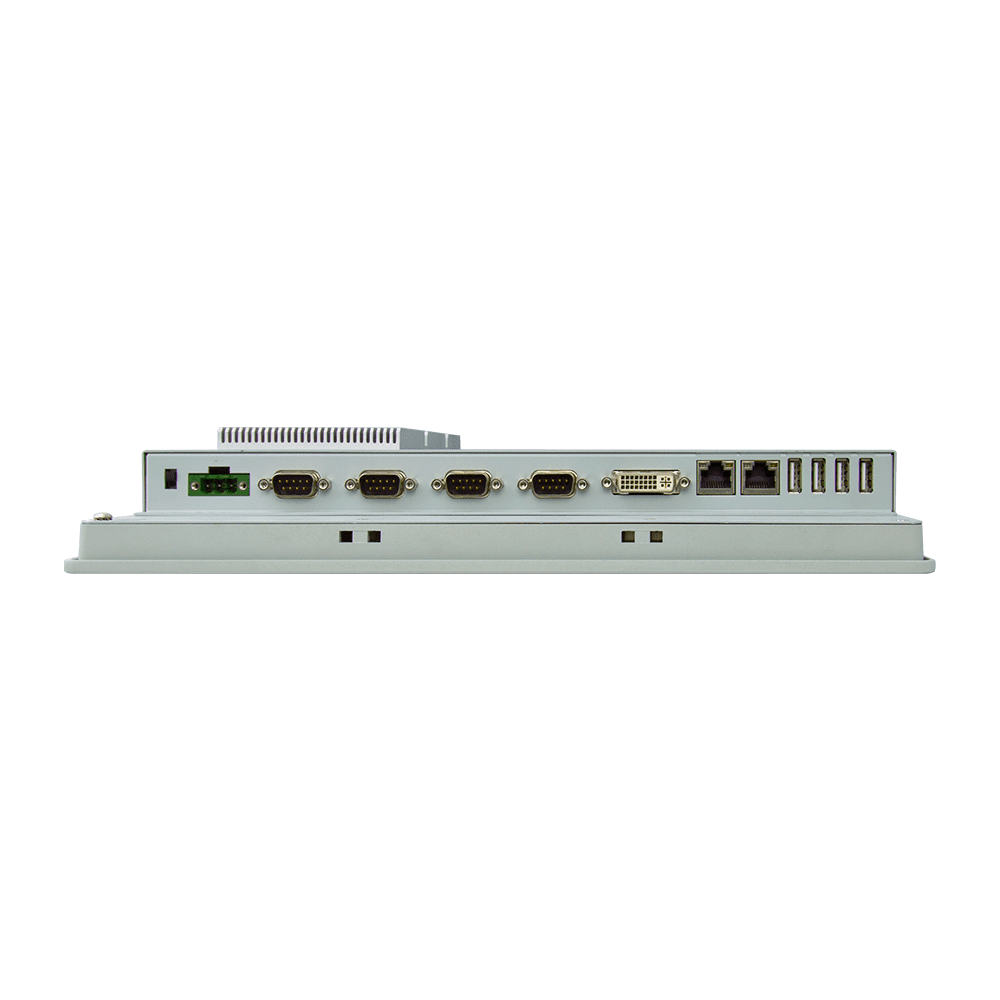

4xDB9, DVI-I, 2xRJ45 Ethernet, 5xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux kernel 3.x, Windows 8.1, Windows 10
Dimensions and weight
Width
389.93 mm
Height
309.93 mm
Depth
46.08 mm
Operating Conditions
Operating Temperature
-20..55 °C
Humidity
10-95%
Vibration
5 ~ 500Hz, 2Grms Random
Shock
Operating 20G, 11ms
Dimensions
Net Weight
3.4 kg
Gross Weight
4.2 kg
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
420 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
FCBGA1170
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek 8111E
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/485
2
USB Total
5
USB 2.0
5
Drive interfaces
SATA 3
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
Control Buttons
Connectors
Connectors
4xDB9, DVI-I, 2xRJ45 Ethernet, 5xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux kernel 3.x, Windows 8.1, Windows 10
Dimensions and weight
Width
389.93 mm
Height
309.93 mm
Depth
46.08 mm
Operating Conditions
Operating Temperature
-20..55 °C
Humidity
10-95%
Vibration
5 ~ 500Hz, 2Grms Random
Shock
Operating 20G, 11ms
Dimensions
Net Weight
3.4 kg
Gross Weight
4.2 kg
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
420 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
FCBGA1170
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek 8111E
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/485
2
USB Total
5
USB 2.0
5
Drive interfaces
SATA 3
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
Control Buttons
Connectors
Connectors
4xDB9, DVI-I, 2xRJ45 Ethernet, 5xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux kernel 3.x, Windows 8.1, Windows 10
Dimensions and weight
Width
389.93 mm
Height
309.93 mm
Depth
46.08 mm
Operating Conditions
Operating Temperature
-20..55 °C
Humidity
10-95%
Vibration
5 ~ 500Hz, 2Grms Random
Shock
Operating 20G, 11ms
Dimensions
Net Weight
3.4 kg
Gross Weight
4.2 kg
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
420 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Socket
FCBGA1170
Max CPU frequency
2.42 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Realtek 8111E
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/485
2
USB Total
5
USB 2.0
5
Drive interfaces
SATA 3
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
Control Buttons
Connectors
Connectors
4xDB9, DVI-I, 2xRJ45 Ethernet, 5xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux kernel 3.x, Windows 8.1, Windows 10
Dimensions and weight
Width
389.93 mm
Height
309.93 mm
Depth
46.08 mm
Operating Conditions
Operating Temperature
-20..55 °C
Humidity
10-95%
Vibration
5 ~ 500Hz, 2Grms Random
Shock
Operating 20G, 11ms
Dimensions
Net Weight
3.4 kg
Gross Weight
4.2 kg

Documentation
LYNC-715-1900G4-User-Manual.pdf LYNC-715-1900G4-Datasheet.pdf
Documentation
LYNC-715-1900G4-User-Manual.pdf LYNC-715-1900G4-Datasheet.pdf
Documentation
LYNC-715-1900G4-User-Manual.pdf LYNC-715-1900G4-Datasheet.pdf
Documentation
LYNC-715-1900G4-User-Manual.pdf LYNC-715-1900G4-Datasheet.pdf
