LPC-P070S-1NC-PRJ
ELGENS
SKU: 57133500

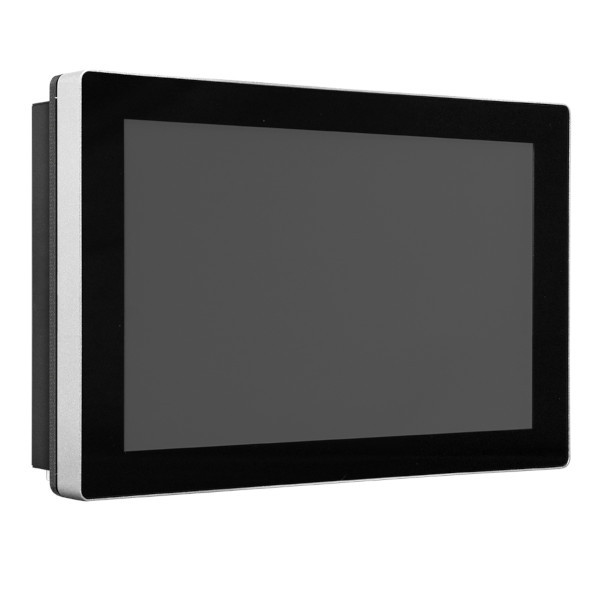

(Project-Based Panel PC); 7'' Fanless Panel PC, 1024x600, P-Cap Touch Screen, Rockchip RK3399 Cortex A72 and A53, 2GB DDR3, 8GB eMMC, 2xGbit LAN, USB 3.0, USB 2.0, USB OTG, 1xRS232/422/485, 2xRS232, Audio, Mini-PCIe, M.2 E-key, 9..+36V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
7 "
Maximum resolution
1024x600 Dots
Brightness
320 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex-A53
Memory
Form-factor
DDR3
Maximum Memory
2 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
3
USB 2.0
1
USB v3.x
1
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
2xRJ45 Ethernet, 3xUSB, DC input (terminal block), 4xDB9 Male
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Android, Ubuntu
Dimensions and weight
Width
0 mm
Height
0 mm
Depth
0 mm
Operating Conditions
Operating Temperature
-20..70 °C
Vibration
1.5 Grms @10~500Hz, IEC-60068-2-64
Dimensions
Net Weight
2.1 kg
Gross Weight
3.5 kg
