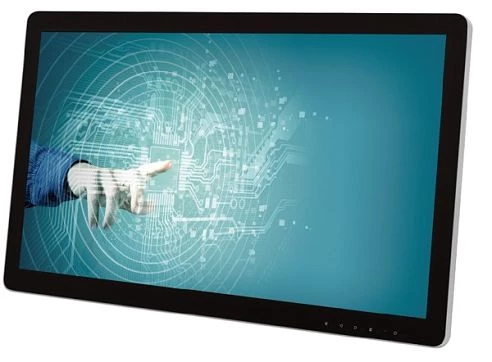

LEAD-PND-2360-BC
Portwell
SKU: 08788500
23,6" TFT LCD Panel PC, 1920x1080, PCAP Touch Screen, AllWinner A83T Octa-Core Cortex A7 CPU, 1Gb DDR3L, 16Gb eMMC, HDMI, DP,1xCOM, 2xUSB 2.0,1xMicroUSB, LAN, Internal speakers, 24V DC terminal block,AC-DC Power adapter 60W
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Embedded, Desktop, Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP66
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
23.6 "
Maximum resolution
1920x1080 Dots
Brightness
250 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex A7
Socket
CPU onboard
Memory
Form-factor
DDR3L
Socket Type
Soldered
Default on Board Memory
1 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
1
Interfaces
USB Total
2
LED / Controls
LED
1xOn/Off LED
Connectors
Connectors
DB25, HDMI, Display Port
System Power Input
Input Voltage DC
24..24 V
Power Supply
Output Power
60 W
Software
Operating System Compatibility
Android
Dimensions and weight
Width
569.1 mm
Height
353.4 mm
Depth
43 mm
Operating Conditions
Operating Temperature
0..50 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
7.8 kg
Gross Weight
11.2 kg
