IPOE-E302
Planet
SKU: 57024000

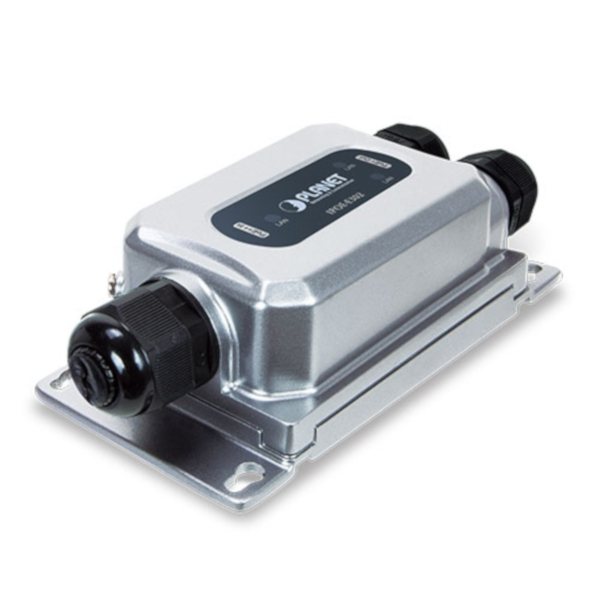

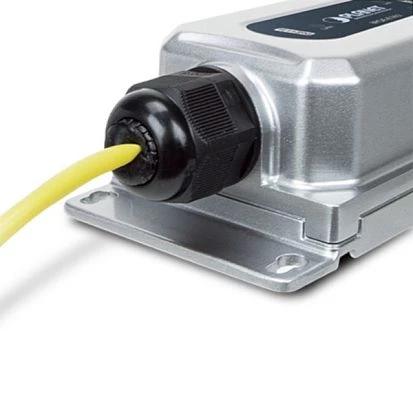

IP67 Industrial PoE Extender 1-Port 802.3bt PoE++ to 2-ports 802.3at PoE+, IK10 impact protection, -45C..+75C operating temperature
Price on request
Available
Available
Ethernet
Total Ethernet
3
10/100/1000 Mbit/s
3
PoE+ 10/100/1000 Mbit/s
3
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
44..57 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IPX7
Dimensions and weight
Width
150 mm
Depth
43.8 mm
Height
72.94 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Vandal Resistance
EN 62262, IK10 level
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.4 kg
Gross Weight
0.8 kg
Ethernet
Total Ethernet
3
10/100/1000 Mbit/s
3
PoE+ 10/100/1000 Mbit/s
3
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
44..57 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IPX7
Dimensions and weight
Width
150 mm
Depth
43.8 mm
Height
72.94 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Vandal Resistance
EN 62262, IK10 level
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.4 kg
Gross Weight
0.8 kg
Ethernet
Total Ethernet
3
10/100/1000 Mbit/s
3
PoE+ 10/100/1000 Mbit/s
3
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
44..57 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IPX7
Dimensions and weight
Width
150 mm
Depth
43.8 mm
Height
72.94 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Vandal Resistance
EN 62262, IK10 level
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.4 kg
Gross Weight
0.8 kg
Ethernet
Total Ethernet
3
10/100/1000 Mbit/s
3
PoE+ 10/100/1000 Mbit/s
3
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
44..57 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IPX7
Dimensions and weight
Width
150 mm
Depth
43.8 mm
Height
72.94 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Vandal Resistance
EN 62262, IK10 level
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.4 kg
Gross Weight
0.8 kg
