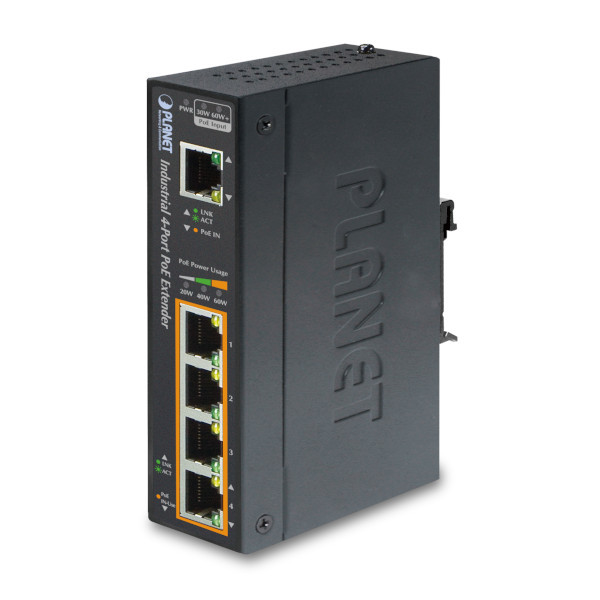

IPOE-E174
Planet
SKU: 56804000
Industrial Gigabit Power-over-Ethernet Extender, 1-Port Ultra PoE to 4-Port 802.3af/at, auto MDI/MDI-X, 6KV DC ESD protection, 44-57VDC Input Voltage, up to 72W PoE Output(52-57VDC), -40..+75C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
Power Budget
64 W
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Input Voltage DC
50..57 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
85 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Vibration
IEC 60068-2-6
Shock
IEC 60068-2-27, IEC 60068-2-32
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.42 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
Power Budget
64 W
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Input Voltage DC
50..57 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
85 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Vibration
IEC 60068-2-6
Shock
IEC 60068-2-27, IEC 60068-2-32
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.42 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
Power Budget
64 W
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Input Voltage DC
50..57 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
85 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Vibration
IEC 60068-2-6
Shock
IEC 60068-2-27, IEC 60068-2-32
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.42 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
Power Budget
64 W
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Input Voltage DC
50..57 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
85 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Vibration
IEC 60068-2-6
Shock
IEC 60068-2-27, IEC 60068-2-32
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.42 kg
Gross Weight
1 kg
