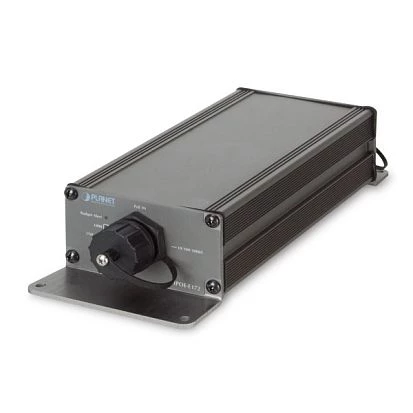

IPOE-E172
Planet
SKU: 56803900
Industrial IP63 Gigabit Power-over-Ethernet Injector, 1-Port Ultra PoE to 2-Port 802.3bt/at, auto MDI/MDI-X, 2KV DC ESD protection, 44-57VDC Input Voltage, up to 60W PoE Output(44-55VDC), -40..+75C Operating Temperature
End-of-life product
Ethernet
Total Ethernet
3
10/100/1000 Mbit/s
3
Power Budget
60 W
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Input Voltage DC
45..58 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP63
Dimensions and weight
Width
40 mm
Depth
81 mm
Height
199.6 mm
Operating Conditions
Operating Temperature
-40..75 °C
Vibration
IEC 60068-2-6
Shock
IEC 60068-2-27
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
