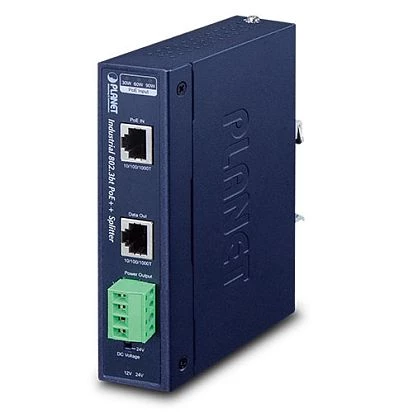

IPOE-173S
Planet
SKU: 56997200
Industrial Gigabit Power-over-Ethernet Splitter, PoE Input/Data output port 10/100/1000 BASE-T RJ-45, 48-56VDC Input Voltage, up to 90 W PoE Output, -40..+75C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
PoE+ 10/100/1000 Mbit/s
1
Power Budget
90 W
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
48..56 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
88 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.45 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
PoE+ 10/100/1000 Mbit/s
1
Power Budget
90 W
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
48..56 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
88 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.45 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
PoE+ 10/100/1000 Mbit/s
1
Power Budget
90 W
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
48..56 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
88 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.45 kg
Gross Weight
1 kg
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
PoE+ 10/100/1000 Mbit/s
1
Power Budget
90 W
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
48..56 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
88 mm
Height
135 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Dimensions
Net Weight
0.45 kg
Gross Weight
1 kg
Documentation
Documentation
Documentation
Documentation
Get a Quote
