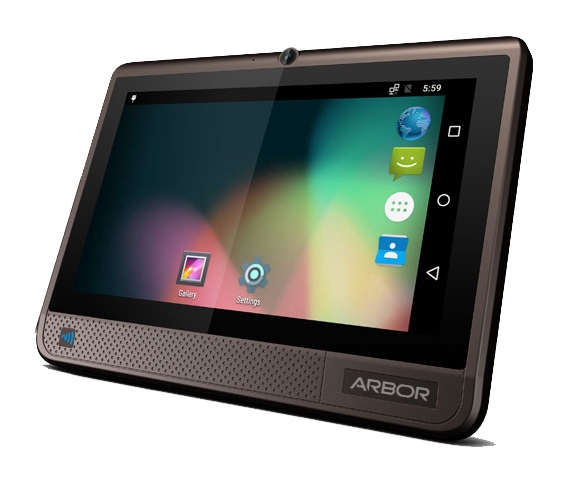

IOT-800
Arbor
SKU: 07145400
8" Fanless Industrial Panel PC, IP65 Front, 1024x600 TFT LCD, PCAP Touch, ARM 4xCortex-A9 1.6GHz SoC, 1GB LPDDR3 RAM, 16GB eMMC Flash, 1x100Mbit LAN, 2xCOM, 2xUSB 2.0, CAN, 4-bit GPIO, MicroSD, WiFi/BT/GPS, 2MP Front, 12-24VDC-in w/ PSU, Android v4.4
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
8 "
Maximum resolution
1024x600 Dots
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex A9
Socket
CPU onboard
Max CPU frequency
1.6 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR3
Socket Type
Soldered
ECC
No
Default on Board Memory
1 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
2
USB 2.0
2
Drive interfaces
MicroSD
1
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
16 GB
Extension Slots
SIM Card slots
Yes
Antenna characteristics
Cellular interfaces
3G, 4G
Additional Functions
GPS
GPS
LED / Controls
Controls
On/Off
Connectors
Connectors
2xDB9, RJ45 Ethernet, 2xUSB, DC input (terminal block), CAN (terminal block), GPIO (terminal block), Audio In
System Power Input
Input Voltage DC
12..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Android
Dimensions and weight
Width
218.2 mm
Height
162.7 mm
Depth
46.5 mm
Operating Conditions
Operating Temperature
-10..70 °C
Humidity
5-85%
Dimensions
Net Weight
0.93 kg
Gross Weight
1.3 kg
