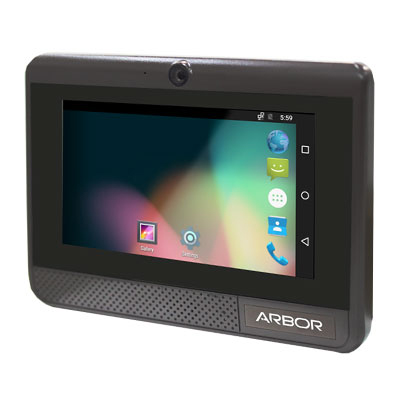

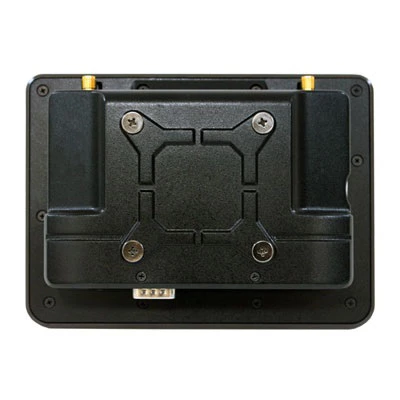

IOT-500
Arbor
SKU: 07103400
5" Fanless Industrial Panel PC, IP65 Front, 960x540 TFT LCD, PCAP Touch, MTK MT2601 2xCortex-A7 1.0GHz SoC, 512MB LPDDR2 RAM, 4GB eMMC Flash, 1x100Mbit LAN, 1xRS-232/422/485, 2xUSB 2.0, WiFi/BT/GPS, Audio, 12-24VDC-in w/ Power Adapter, Android v5.1
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall VESA 50
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
5 "
Maximum resolution
960x540 Dots
Brightness
350 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex A7
Socket
CPU onboard
Max CPU frequency
1 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR2
Socket Type
Soldered
ECC
No
Default on Board Memory
0.512 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB 2.0
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
4 GB
Extension Slots
SIM Card slots
Mini-SIM
Antenna characteristics
Cellular interfaces
3G
Additional Functions
GPS
GPS
LED / Controls
Controls
On/Off
Connectors
Connectors
DB9, RJ45 Ethernet, 2xUSB, DC input (terminal block), CAN (terminal block), GPIO (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Android
Dimensions and weight
Width
149.3 mm
Height
110 mm
Depth
36.8 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
5-85%
Dimensions
Net Weight
0.35 kg
Gross Weight
0.55 kg
