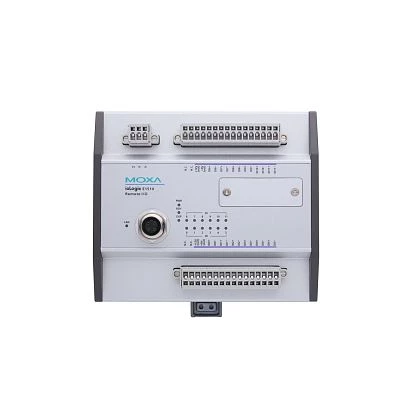

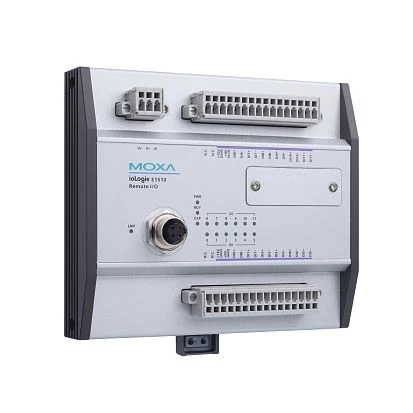

ioLogik E1512-M12-CT-T

MOXA
SKU: 06062200
Ethernet Remote I/O Server, 4DI, 4DIO, M12 connectors, -40...+85 C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
1
Supported Protocols
Industrial Protocols
Modbus TCP server
Digital Input
Total channels of digital input
4
Type
Dry contact, Wet contact
Level of Logic "0"
10~30 V
Level of Logic "1"
0~3 V
Isolation of Digital Input
3000 V
Counter
250Hz, 16 bit
Digital Output
Total channels of digital output
4
Sink/Source
Sink
Max. load current
200 mA
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
144 mm
Depth
30 mm
Height
124 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
EMI
FCC Part 15, EN 61000-6-4, EN 61000-3-2, EN 61000-3-3
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 61000-6-2
Freefall
IEC 60068-2-32
Rolling Stock
EN 50121-4, EN 50155, EN 50121-3-2
Safety
UL 508
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.83 kg
Gross Weight
1 kg
