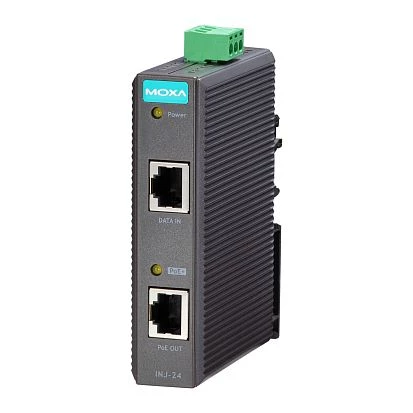

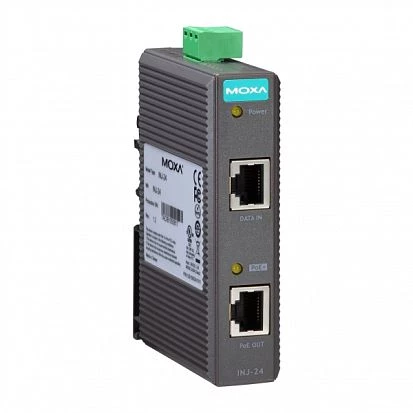

INJ-24
MOXA
SKU: 05606200
PoE+ Injector, maximum output of 30 W at 24/48 VDC, 0 to 60°C operating temperature
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
Type 10/100/1000 Mbit/s
1xRJ-45
PoE+ 10/100/1000 Mbit/s
1
Power Budget
30 W
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Input Voltage DC
22..57 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
24.9 mm
Depth
86.2 mm
Height
100 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Safety
UL 508, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
0.21 kg
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
Type 10/100/1000 Mbit/s
1xRJ-45
PoE+ 10/100/1000 Mbit/s
1
Power Budget
30 W
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Input Voltage DC
22..57 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
24.9 mm
Depth
86.2 mm
Height
100 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Safety
UL 508, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
0.21 kg
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
Type 10/100/1000 Mbit/s
1xRJ-45
PoE+ 10/100/1000 Mbit/s
1
Power Budget
30 W
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Input Voltage DC
22..57 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
24.9 mm
Depth
86.2 mm
Height
100 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Safety
UL 508, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
0.21 kg
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
1
Type 10/100/1000 Mbit/s
1xRJ-45
PoE+ 10/100/1000 Mbit/s
1
Power Budget
30 W
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX
System Power Input
Input Voltage DC
22..57 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
24.9 mm
Depth
86.2 mm
Height
100 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Safety
UL 508, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
0.21 kg
