ICP-DAS i-87K Serial Bus Extension Modules

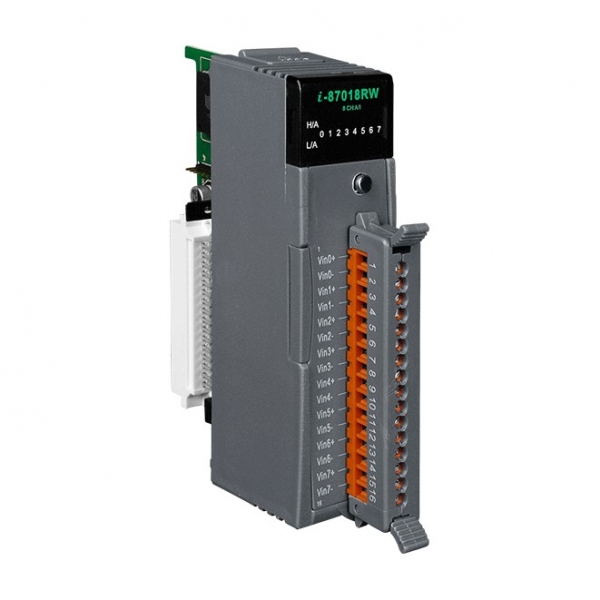

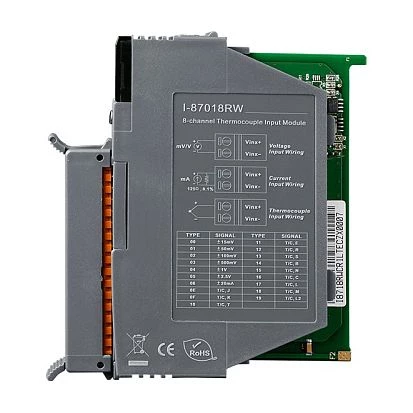

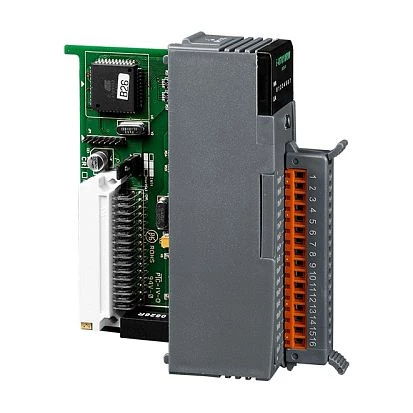

I-87018RW

I-87018RW

SKU: 02957000

8 Channels Thermocouple Input Module, 240 V Overvoltage Protection, Hight Profile

Price on request

Construction

Construction Chassis

Plastic Chassis

Additional Functions

Watchdog timer type

Hardware, Software

Supported Protocols

Industrial Protocols

DCON slave

Expansion Module

Communication interface

Serial Bus

Analog Input

Total channels of analog input

8

Number of Bits

16 Bit

Voltage range

+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V

Current range

-20...+20 mA

Sampling rate

10 Hz

Differential channels

8

Thermocouple

J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, L: -200...+800 °С, M: -200...+100 °С, L(DIN43710): -200...+900 °С

Connectors

Connectors

Screw Terminal

Operating Conditions

Operating Temperature

-25..75 °C

Dimensions

Net Weight

0.16 kg

Gross Weight

0.21 kg
