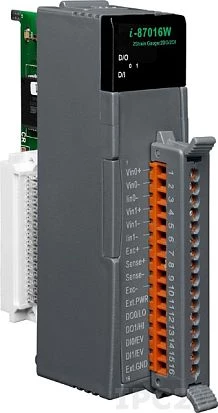

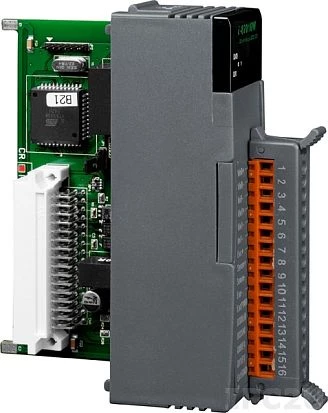

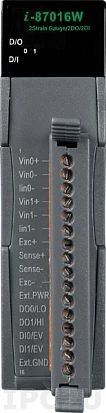

I-87016W
ICP DAS
SKU: 01271000
2 Channels Strain Gauge Input Module
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Expansion Module
Communication interface
Serial Bus
Analog Input
Total channels of analog input
2
Number of Bits
16 Bit
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
Current range
-20...+20 mA
Sampling rate
10 Hz
Load Cell
6 wire Full Bridge, Half Bridge, Quarter Bridge
Analog Output
Channels of analog input
1
DAC Bit Rate
16 Bit
Voltage range
0...10 V
Digital Input
Total channels of digital input
2
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~50 V
Sink/Source
Sink
Digital Output
Total channels of digital output
2
Type
Open collector
Sink/Source
Sink
Output voltage
3.5~50 V
Max. load current
700 mA
Connectors
Connectors
Screw Terminal
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.16 kg
Gross Weight
0.21 kg
