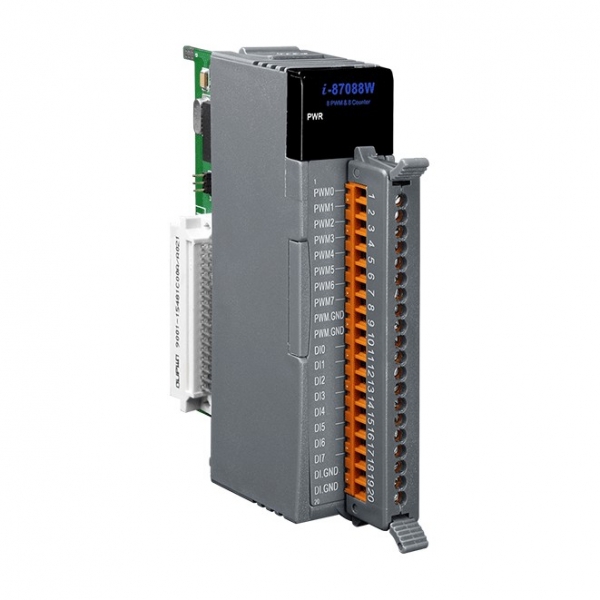

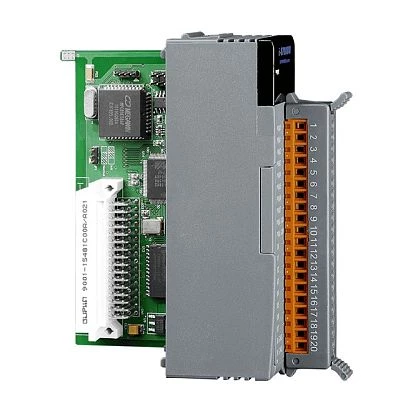

I-87088W
ICP DAS
SKU: 66395800
8-channel PWM Output and 8-channel High Speed Counter Module (Gray Cover) (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Expansion Module
Communication interface
Serial Bus
Digital Input
Total channels of digital input
8
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~5 V
Sink/Source
Sink
Counter
1 MHz, 32 bit
Digital Output
Total channels of digital output
8
Sink/Source
Sink
Output voltage
3.5~5 V
Max. load current
1 mA
Channels
8
Signal Type
PWM: Source
Output frequency range
1~500 kHz
Output Voltage
5 V
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
30 mm
Depth
102 mm
Height
115 mm
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.16 kg
Gross Weight
0.21 kg
