I-87018ZW-G/S2
ICP DAS
SKU: 05750500

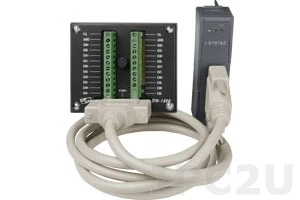

10-channel thermocouple input module Gray color include I-87018Z + DN-1822 Daughter Board ROHS
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
DCON slave
Expansion Module
Communication interface
Serial Bus
Analog Input
Total channels of analog input
10
Number of Bits
16 Bit
Voltage range
+/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
10 Hz
Differential channels
10
Thermocouple
J: -210...+760 °С, K: -270...+1372 °С, T: -270...+400 °С, E: -270...+1000 °С, R: 0...1768 °С, S: 0...1768 °С, B: 0...1820 °С, N: -270...+1300 °С, C: 0...+2320 °С, L: -200...+800 °С, M: -200...+100 °С, L(DIN43710): -200...+900 °С
Connectors
Connectors
DB25
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.16 kg
Gross Weight
0.21 kg
